COLD AISLE CONTAINMENT
Custom-made is welcomePriority solution of DC wind management & energy saving

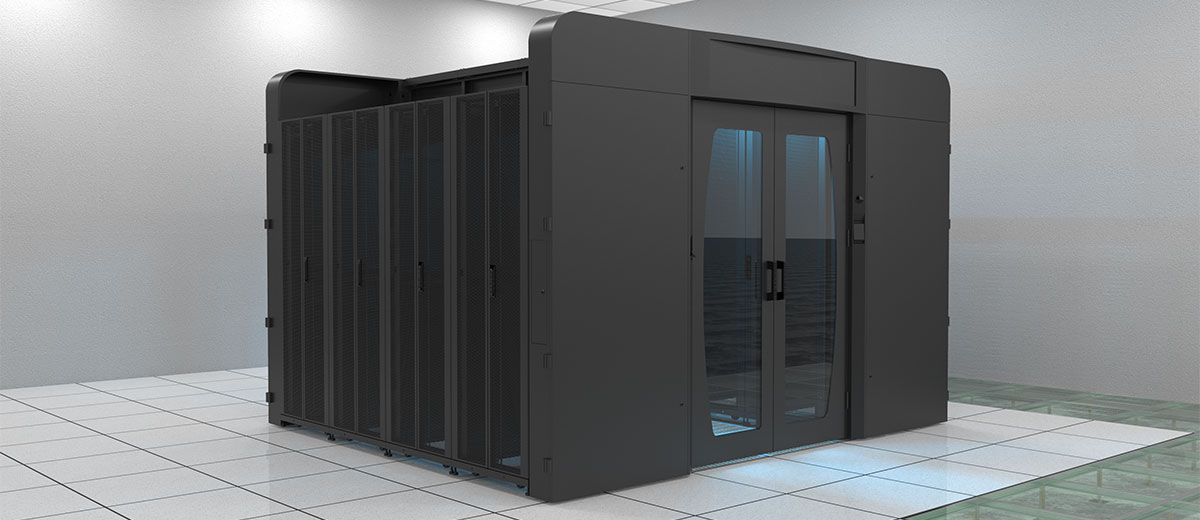

The aisle containment system is a modular rowbased thermal containment solution, which separates cold and hot data center air streams to and from equipment. It manages airflow at the source, increases the cooling efficiency and significantly lowers down operating costs.
Row level thermal containment improves cooling efficiency and predictability to address zones and complete data center deployments. Most parts of the aisle containment components are designed by modular, which allows quick deployment on site and address changing needs or future expansion with pay-as-you grow architecture.

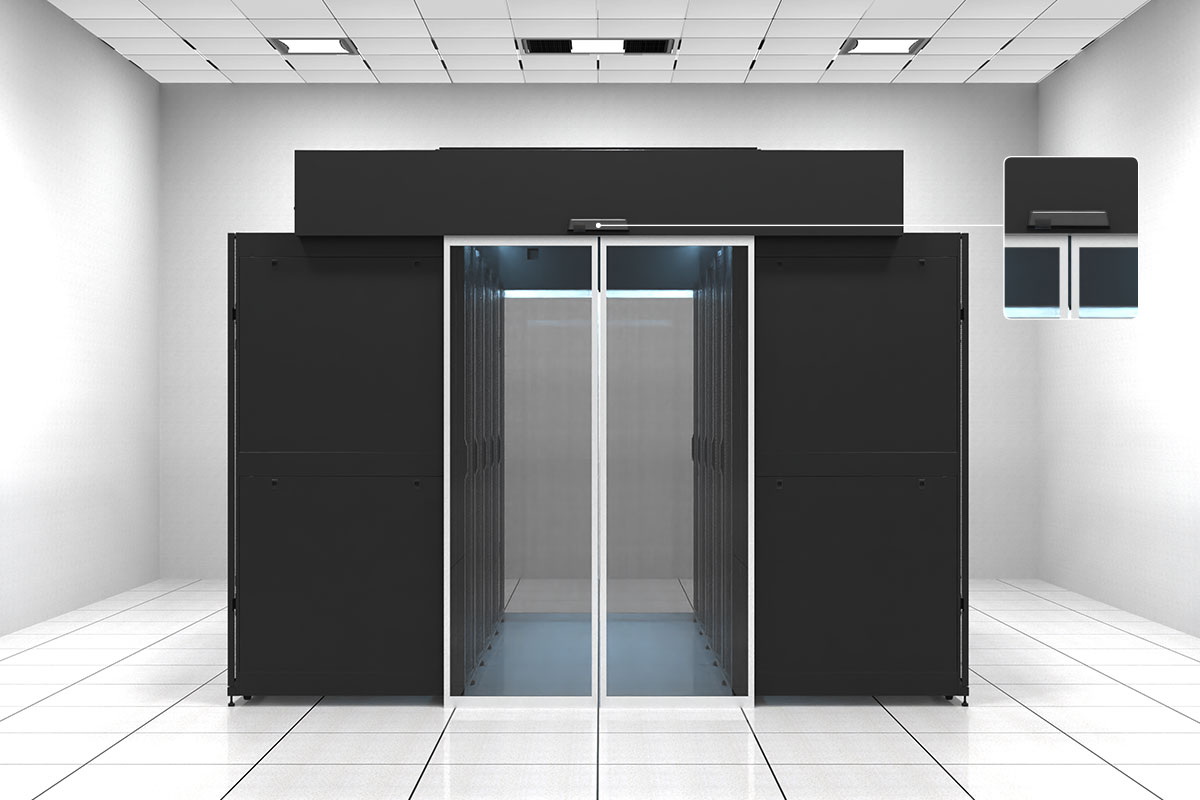

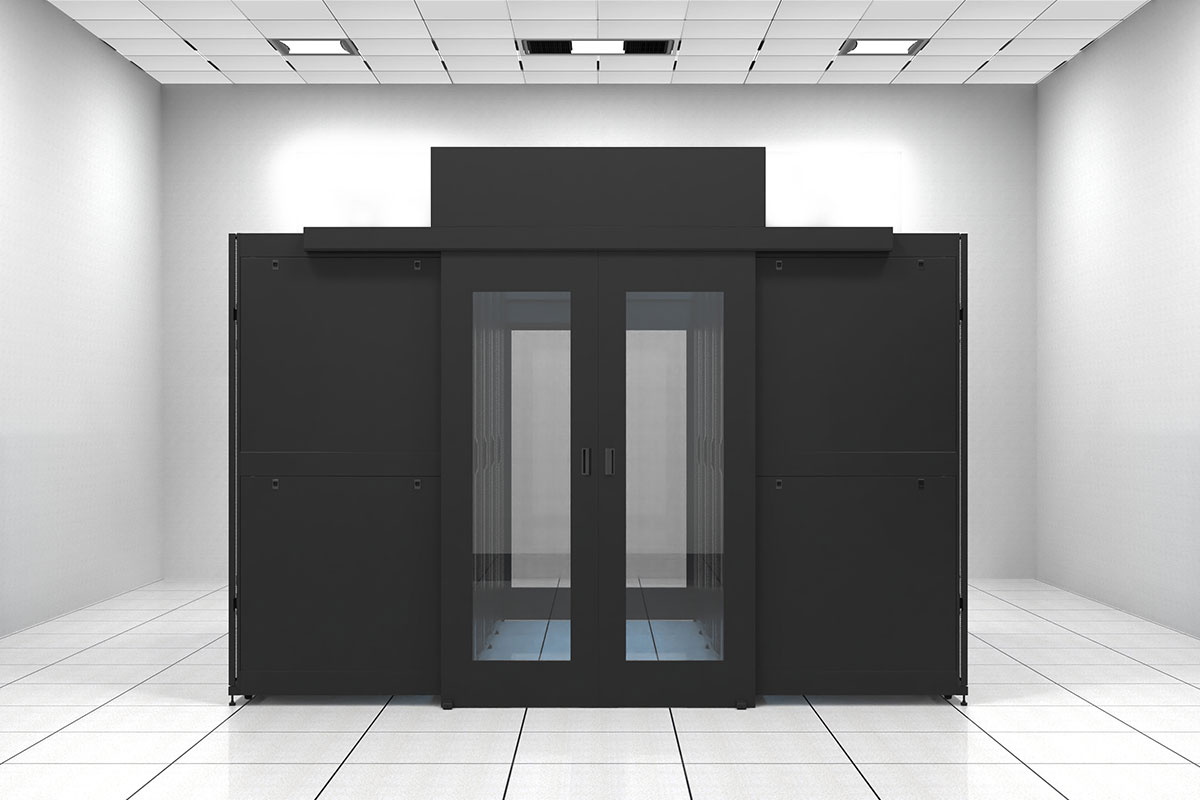

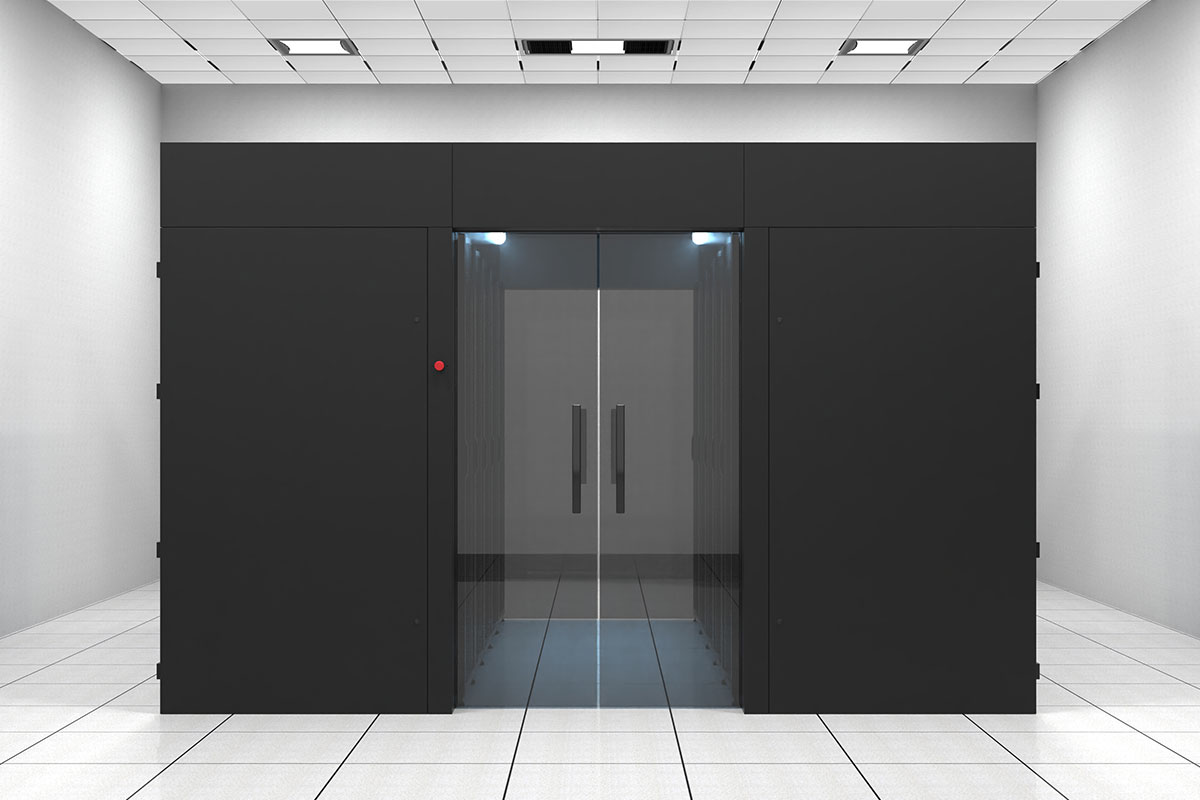

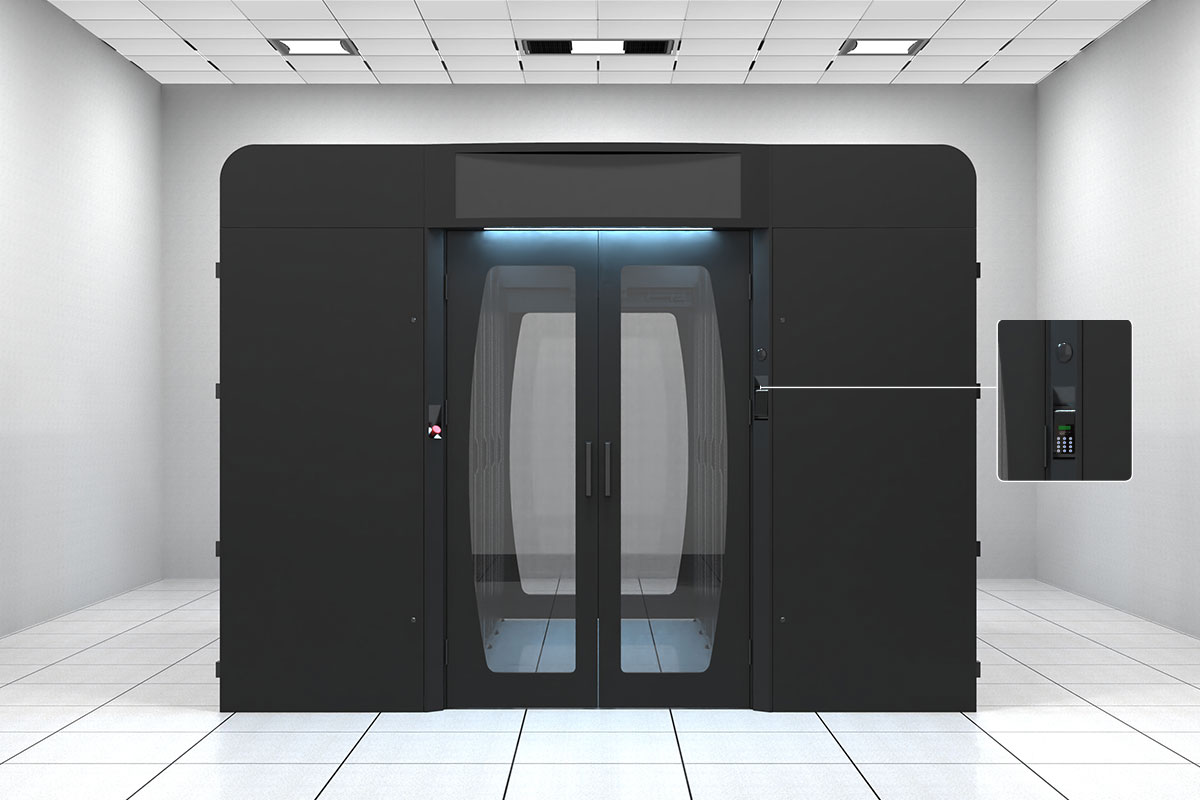

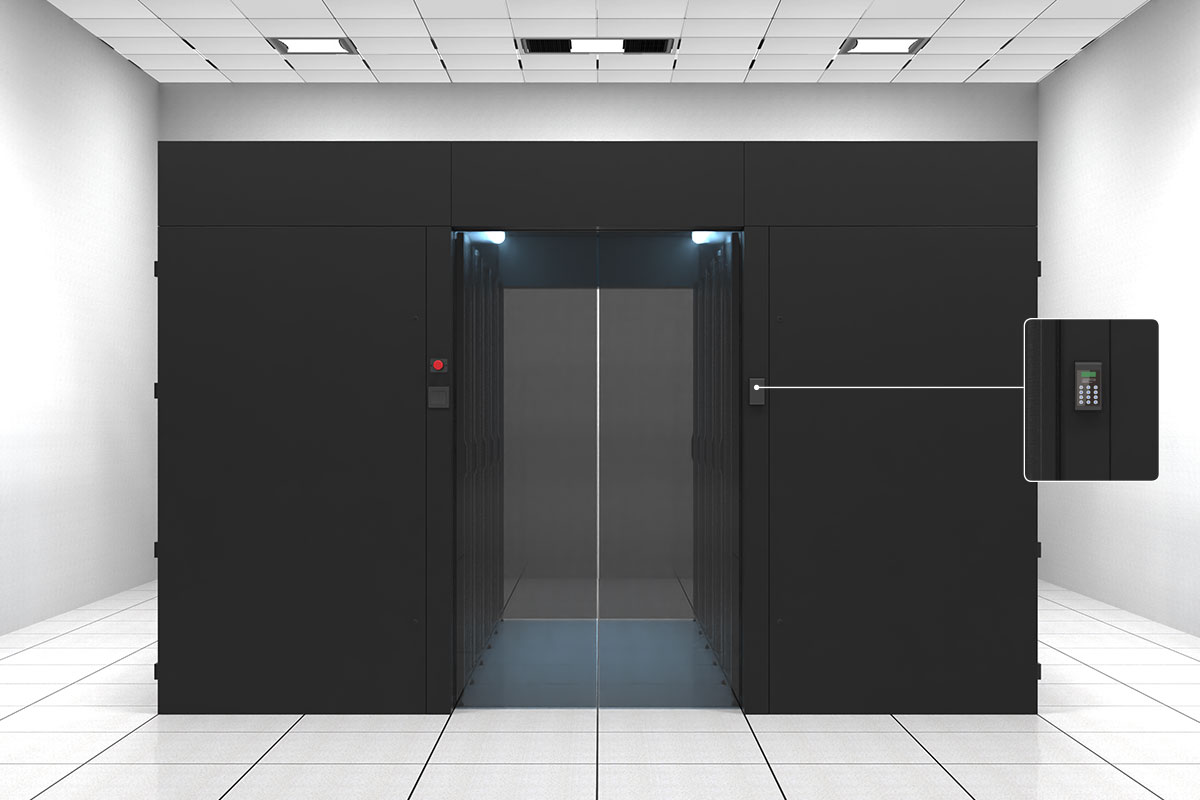

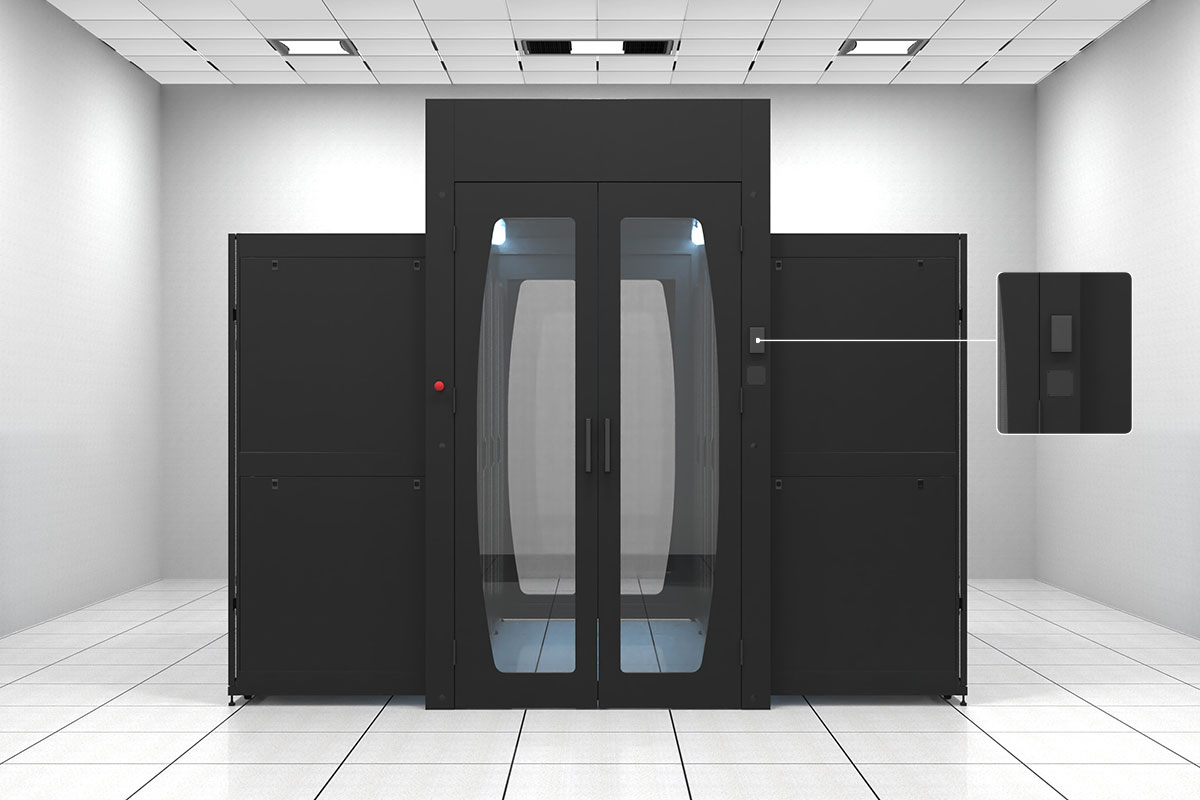

Provide the right combination of safety and security, dual mechanical doors or sliding doors are available.
Aisle containment in the data center requires that cabinets are aligned in a hot aisle/cold aisle layout. Containment panels or strips create a partition to isolate either the server supply air (cold aisle containment) or the exhaust air (hot aisle containment). Preventing the supply and exhaust air from mixing significantly increases the capacity and cooling efficiency of the cooling infrastructure.
Each site will be different due to the site conditions, cooling infrastructure, rack density and other factors. If properly installed you can expect 20-50% reduction in cooling costs. Efficiency is maximized if the cooling systems with variable speed fans and there is a good return air path

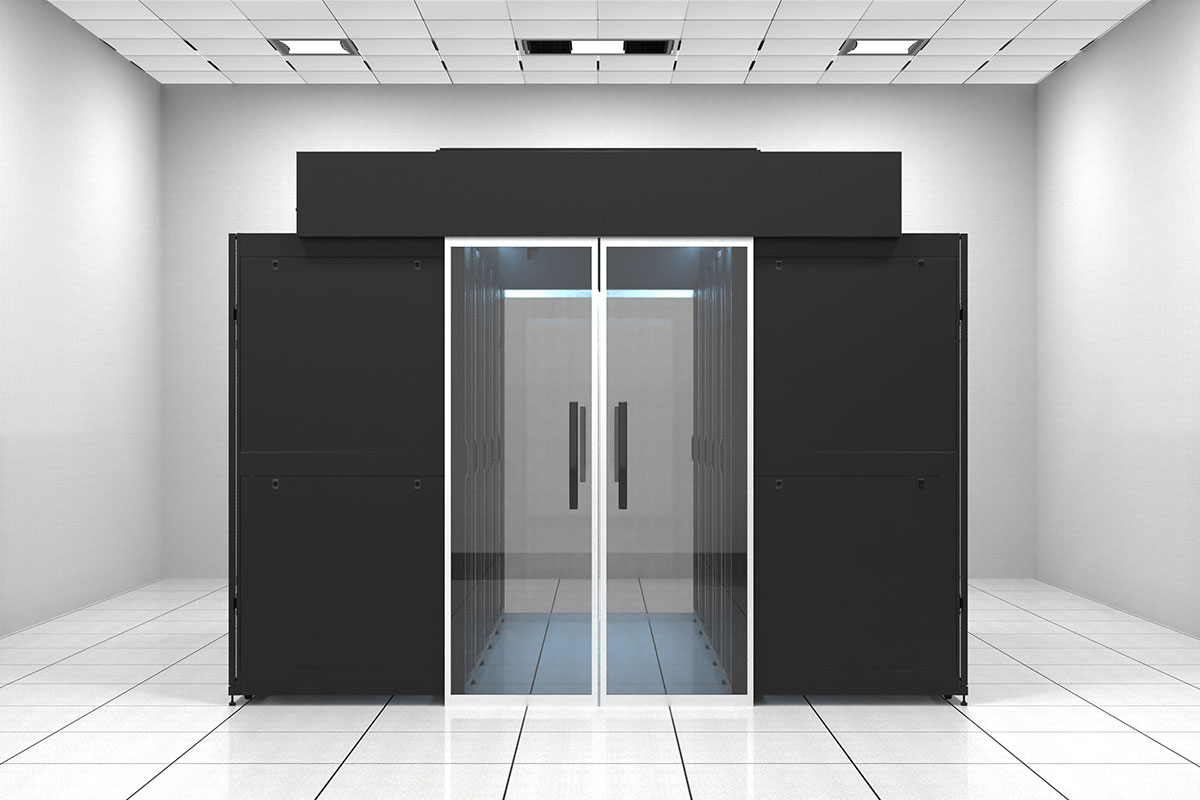

APPEARANCE AND STRUCTURE
- 1Containment Top Panel Has Even Roof Structure,350mm Higher Than Cabinet Top, Top Panel TotalWidth Is 1305mm, Modular Frame Design, Easy To Installation.
- 2The Net Height Of Aisle Container Is Above 2Meters When The Top Panel Dropped Away, So The Daily Maintenance Will Not Be Affected.
- 3Thanks To The Modular Designed Cold Aisle Containment Units, Every Unit Can Be Installed Independently And Easily Connected With The Units In Next.
- 4Doors Should Be Installed At The Front And Rear To Prevents The Hot Airflow Enter Into The Equipment.
- 5Pre-Installed Terminal Block Is Connected With Fire Suppression Systems, The Active Containment Roof panel Will Open When There Is A Fire Alarm Signal.

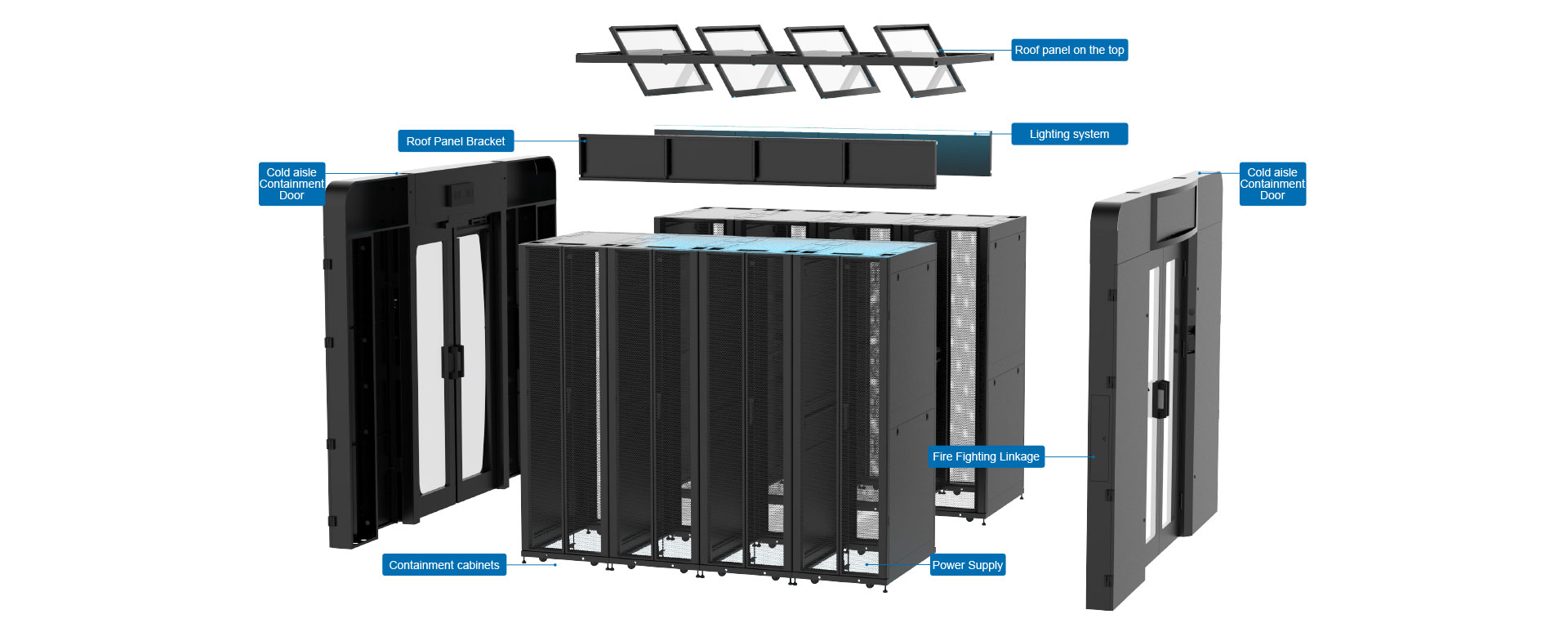

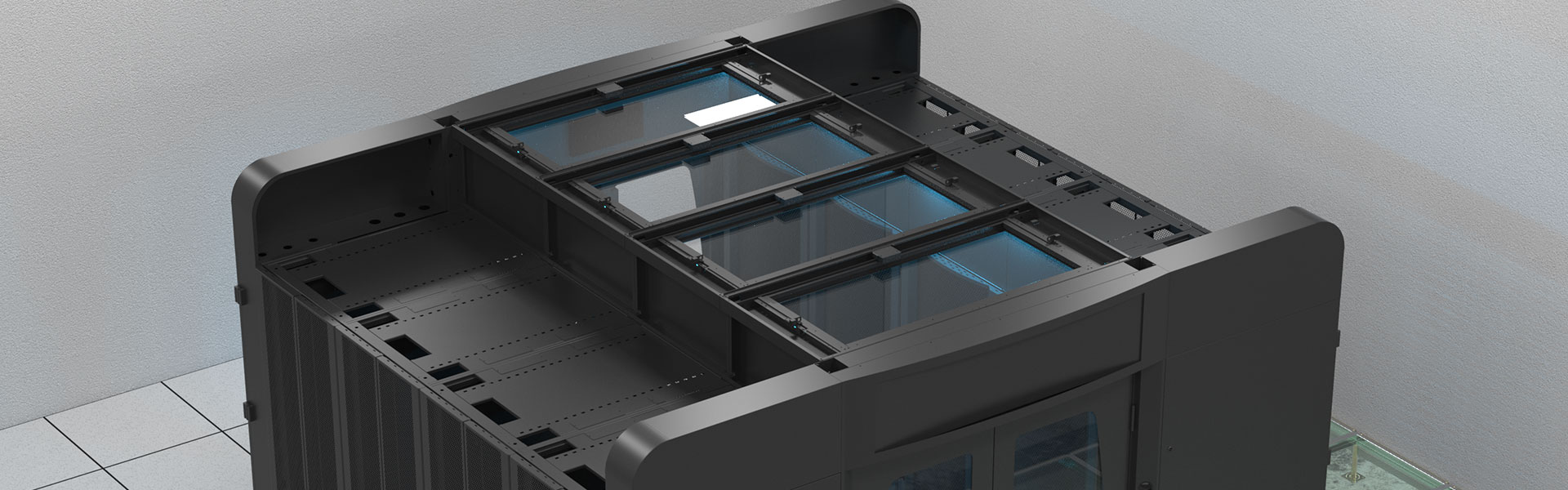

COMPONENTS OF CONTAINMENT ROOF PANEL
Under Normal Operation Time, The Roof panels Are Stuck By Electromagnet In A Horizontal Position, In Case There Is A Fire Alarm, Roof panel’s Electro-Magnet Will Be Cut Off, Panel Will Open Due To It’s Gravity To Make Sure The Extinguish Gas Can Enter Into The Cold Aisle Containment.
- 1The Roof panels Are Made From Steel Frame And TemperedGlass, The Thickness Of Steel Frame Is More Than 1.5mm, Thickness Of Glass Is More Than 5mm, Light Pass Rate IsMore Than 99%.
- 2All the panels has width of 600mm, each unit can be installed independently and connected to the next one.
- 3All The Panels Are Stuck By Electro-Magnet, Panels Will Be Opened When There Is A Fire Alarm, Sensor Action Time Is Less Than 3 Seconds,The Panels Occupies At Least 60%Volume Against The Whole Cold Aisle Containment.

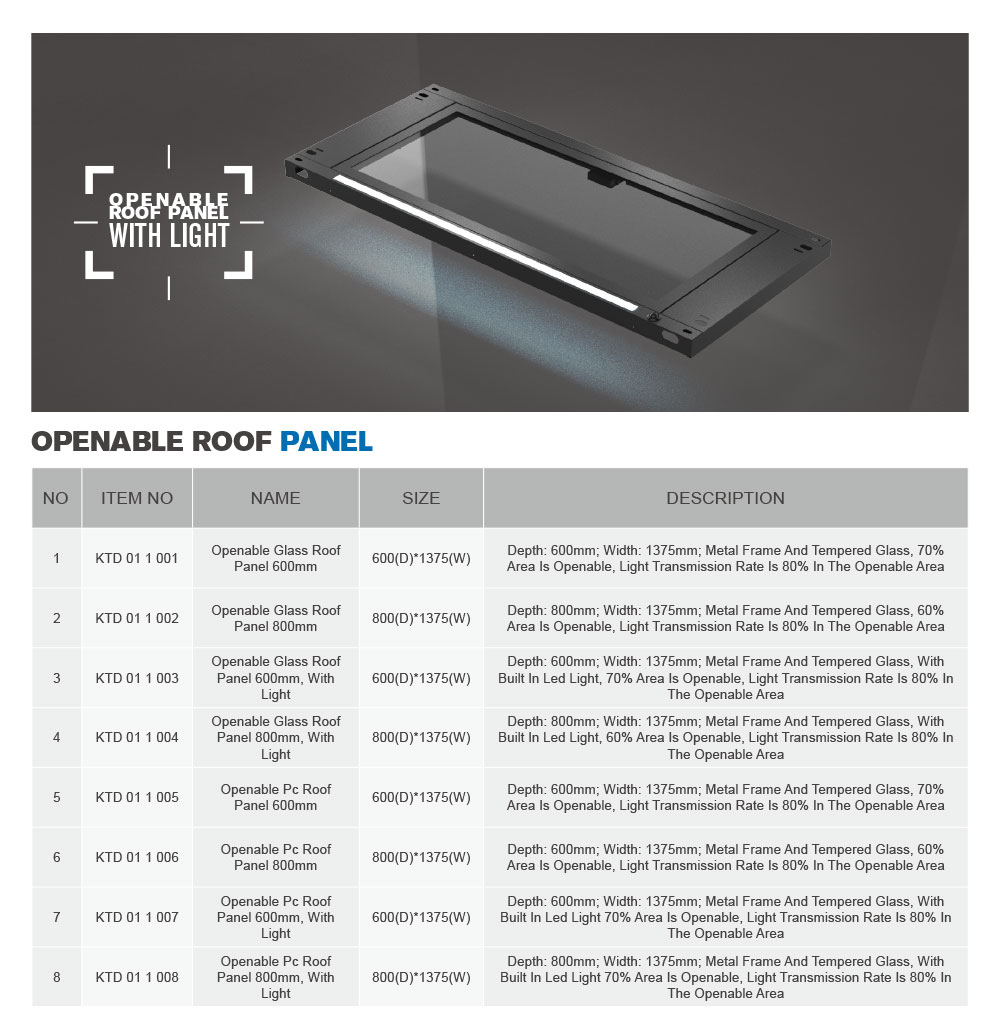

- OPENABLE ROOF PANELOpenable Roof Panel Was Attracted By Electromagnet Under Working Condition, The Panel Is Paralleled To The Walkway For Sealing Purpose. When A Fire Alarm Occurs, The Panel Will Be Opened Shortly To Ensure That The Extinguishing Gas Can Enter The Closed Cold Aisle Containment Before The Fire Fighting System Is Activated.VIEW MORE

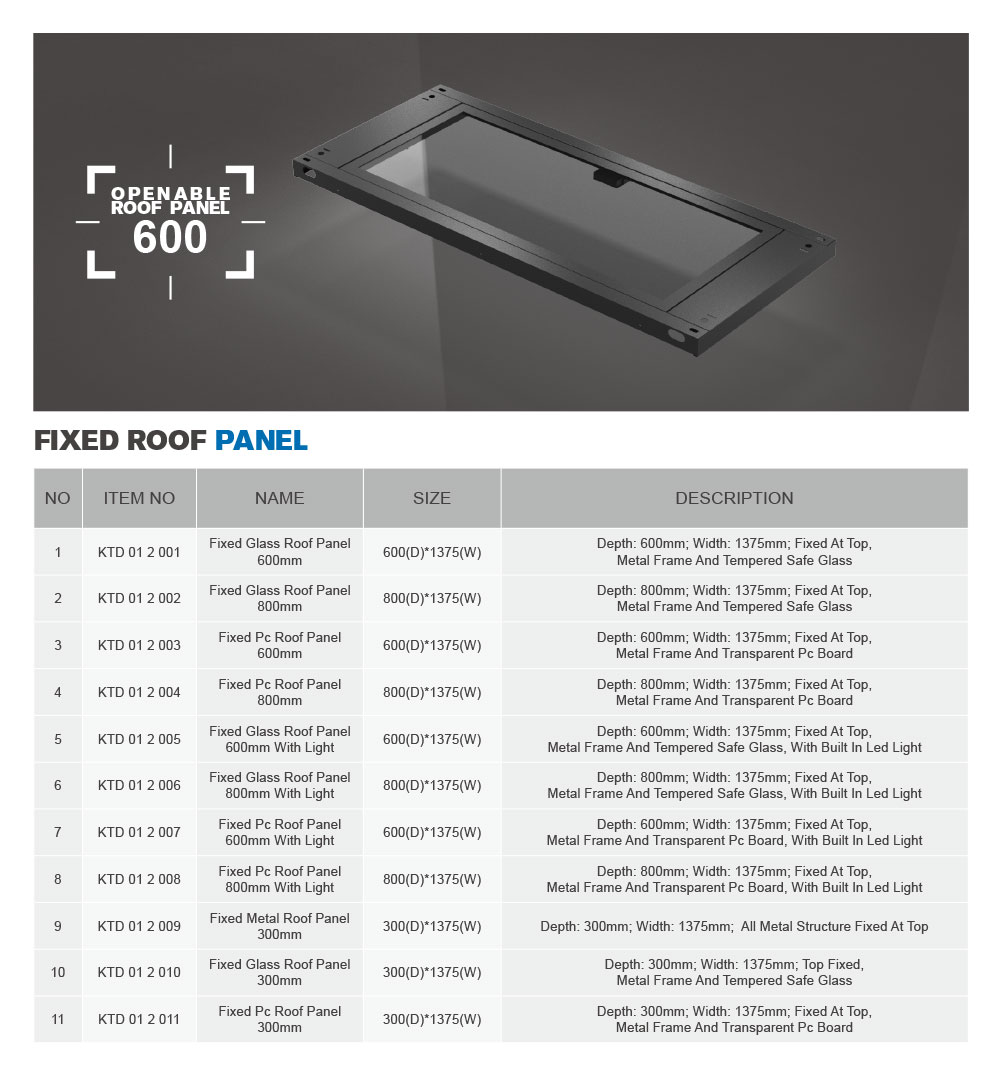

- Fixed Roof PanelFixed Roof Panel Is Made Of Steel Frame Plus Transparent Window Inside, Unable To Open, Others Same As Openable Panel For System Integrity Purpose.VIEW MORE

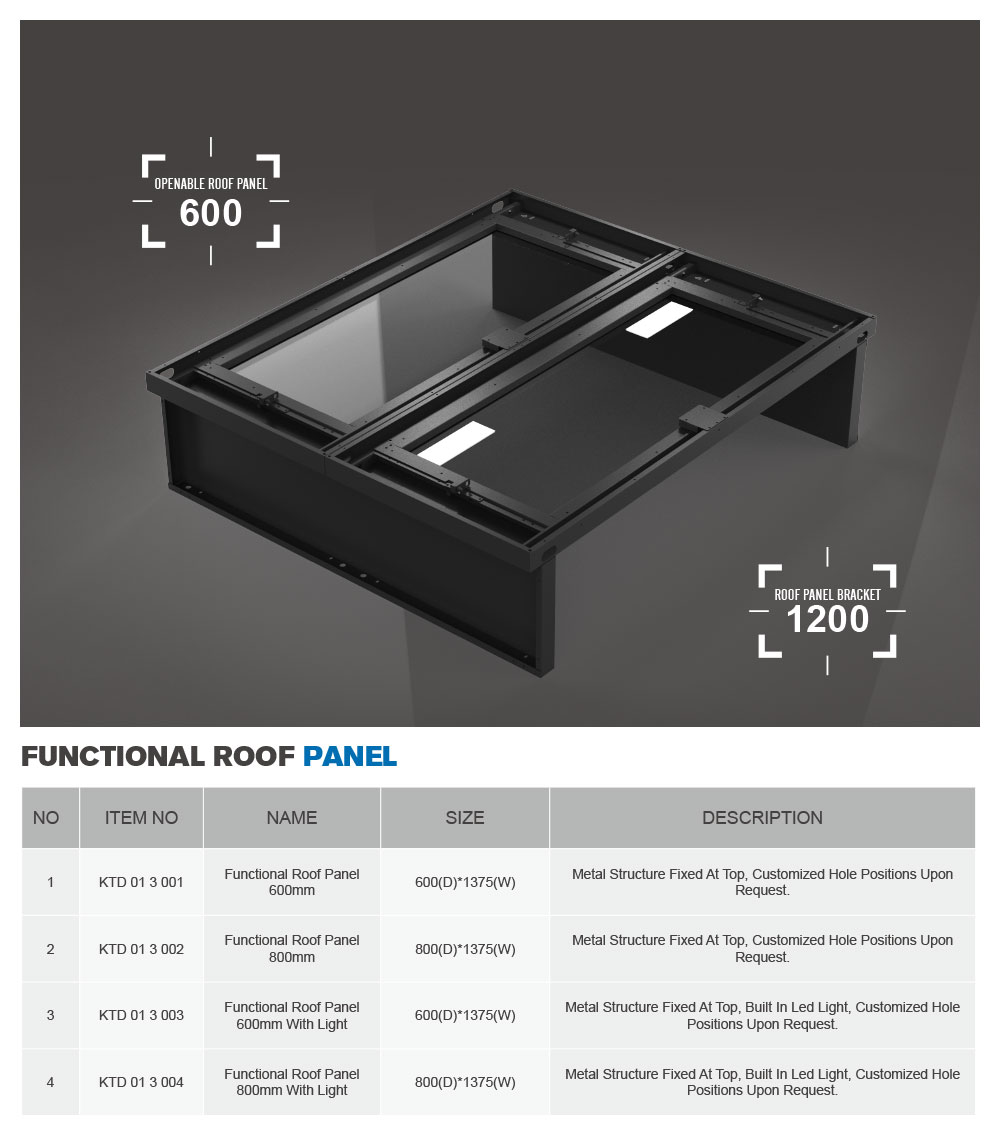

- Functional roof panelFunctional Roof Panel Is Made Of Steel Sheet, Suit For Installation Of Environmental Control Module And The Control Device Of The Aisle Containment At The Beginning, End Or Middle Of The Roof Panel. Hole Specification Should Be Provided By Client In Advance.VIEW MORE

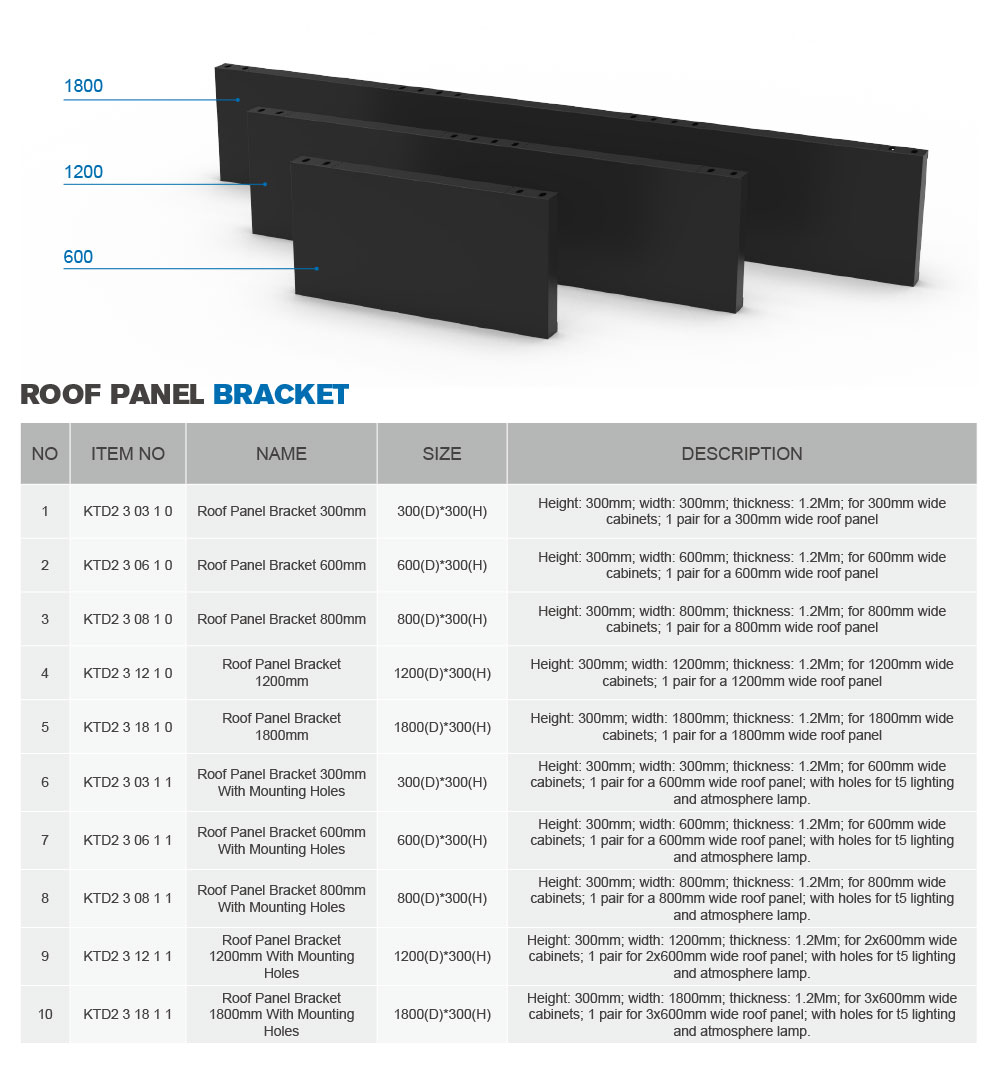

- Roof panel bracketRoof panel bracket is installed at the top of cabinet for support purpose. The normal height is 300mm to make sure cabinet door has no conflict while the roof panel is opened. The usage of roof panel bracket and panel is for sealing purpose to isolate the hot and cold air flow.VIEW MORE

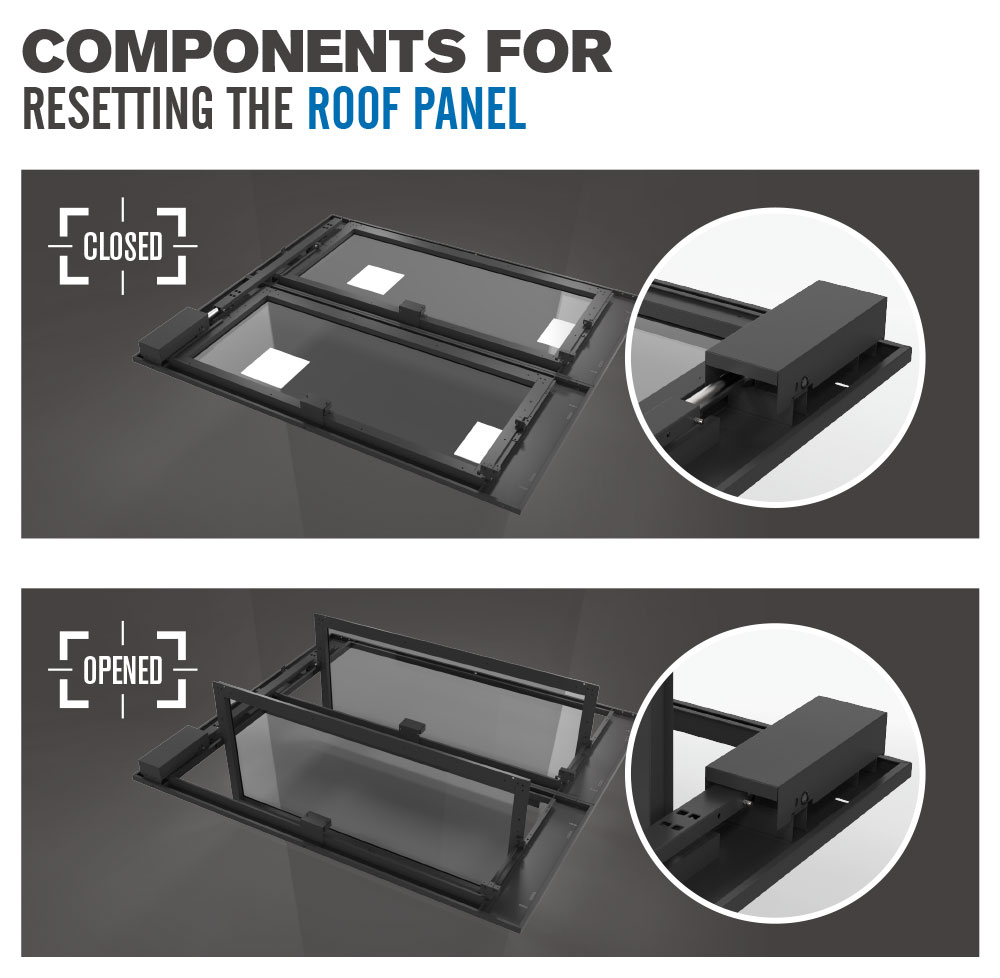

- Components for resetting the roof panelPerfectly designed one button open and close system, ensure all the roof panels can be opened and closed automatically, with no power consumption and no maintenance needed in daily use, motor voltage DC 12V.VIEW MORE
FrameWORK design
- 1Modular designed frame made of cold roll steel, with thickness ≥ 1.2mm to ensure the firmness and security.
- 2Each modular unit has proper space for cable management of installation sensor, control unit etc.
- 3The framework meets the requirements for laying the air sampling pipe network of the fire protection system.

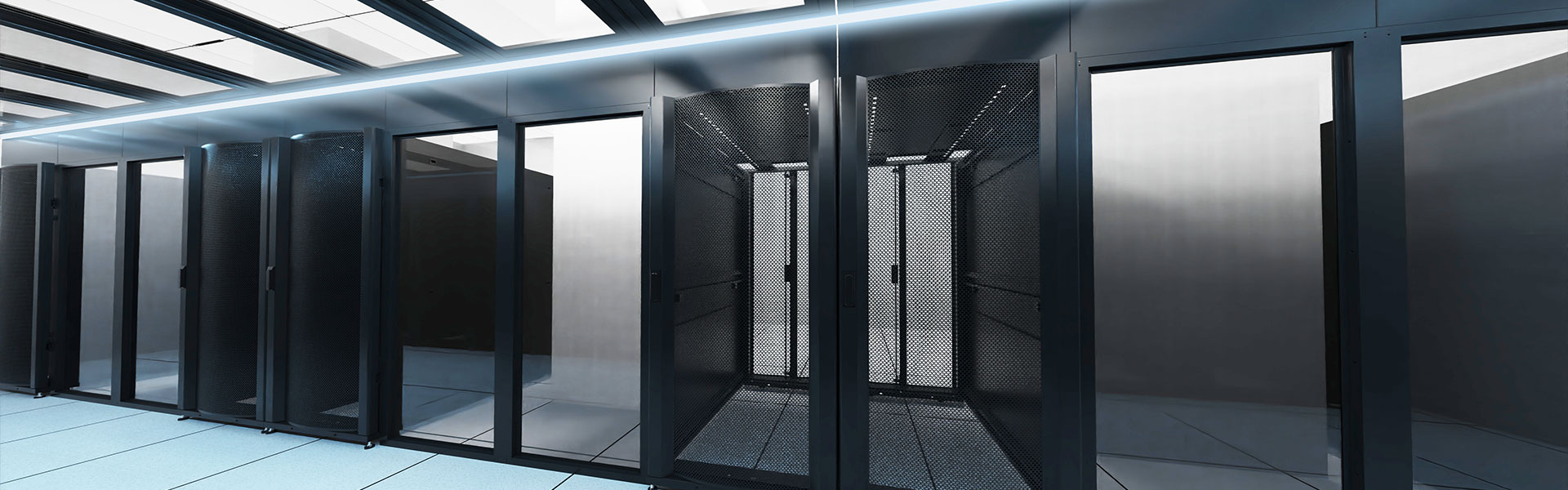

LIGHTING SYSTEM
- LED lightingT5 white light adopts LED cold light source, exposed installation, illumination is more than 600 lumens.VIEW MORE

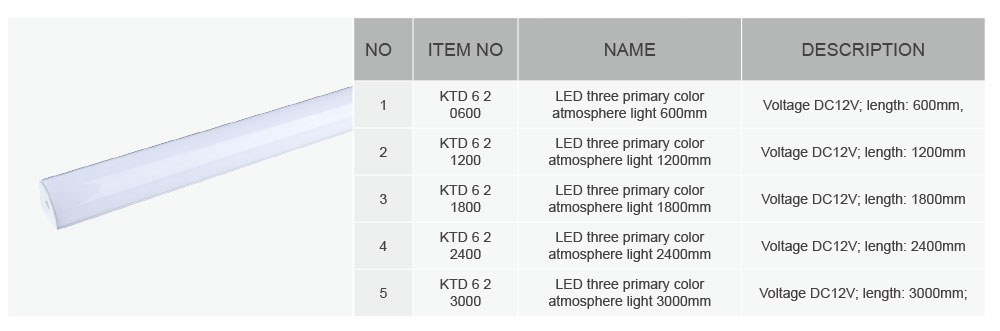

- LED three primary atmosphere lampThe LED three primary color atmosphere lights provides blue, green and red colors, reflects the internal temperature environment status through different color of lights.VIEW MORE

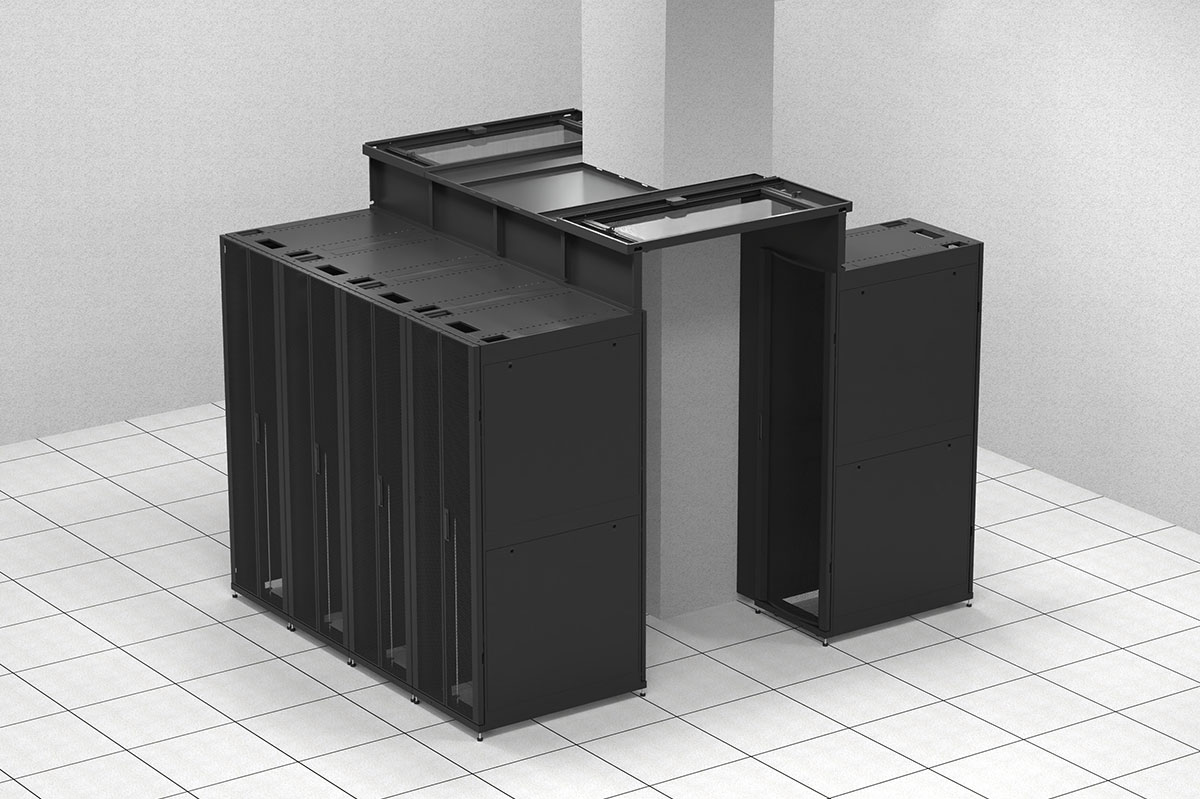

Decorative wall

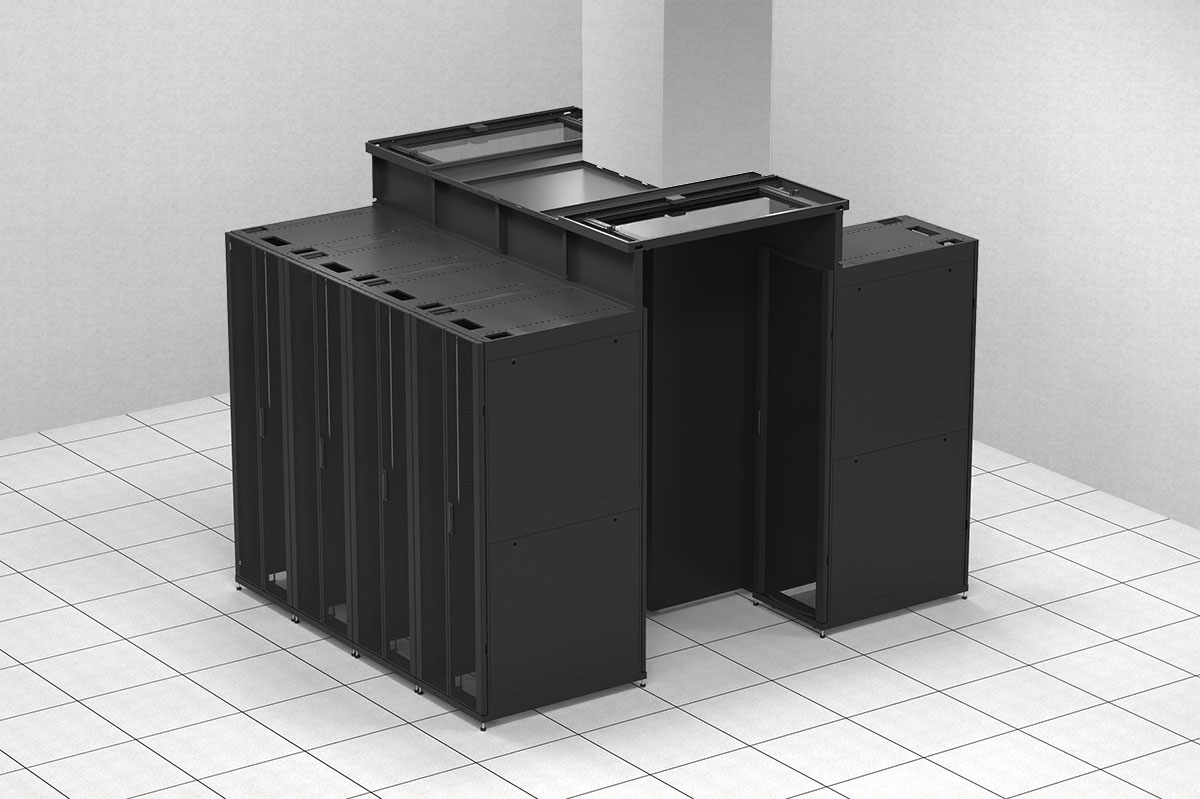

- 1When the pillar among the cabinets, sealing decorative board should be installed aligning the cabinet door.
- 2When the pillar in the aisle, install a decorative wall between the pillar and the cabinet.
- 3Airflow isolation is for better hot and cold wind management, make the whole system beautiful and integrative.
