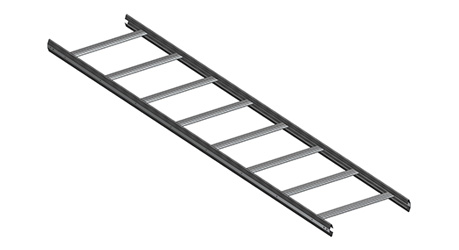

Aluminum cable ladder DS01

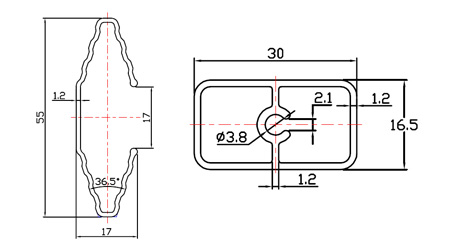

Code

A(mm)

B(mm)

DS01-100

100

66

DS01-200

200

166

DS01-300

300

266

DS01-400

400

366

The cable ladders are tested according to IEC 61537.
The cable ladders must not be used as walkways.

Introduction of related accessories

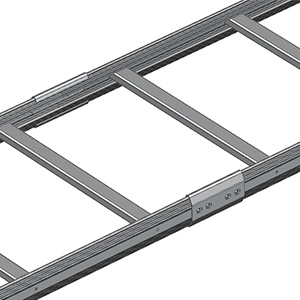

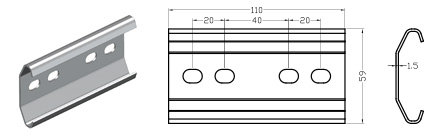

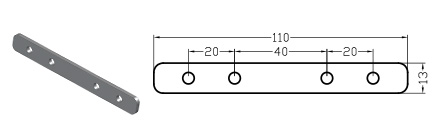

Jointer 55

  • For straight, rigid jointing of cable ladders, bends, junctions and risers.

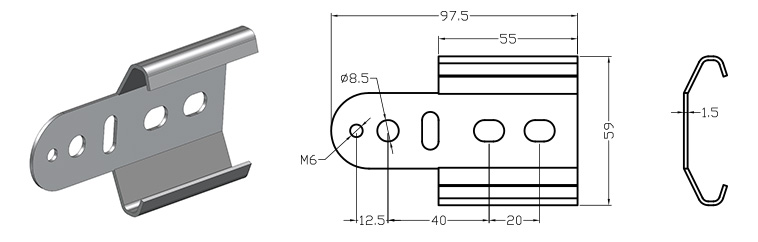

Coupling 55

Used for horizontal or vertical branches at any desired angle.

Use and installation

  • Coupling 55 is used for horizontal branching to the required angle. The cut length of the ladder ends determines the angle.

  • Coupling 55 is used to form vertical angles of the required size.

  • Coupling 55 is used to form vertical branches of the required angle.

  • Use 4 coupling 55 to form a horizontal bend in different angles. The cut lengths of the ladder ends determine the angle.

Profile clamp 55

For installation where the cable ladder is to be fixed to cantilever arms, support brackets etc.

Use and installation

Support bracket 55
