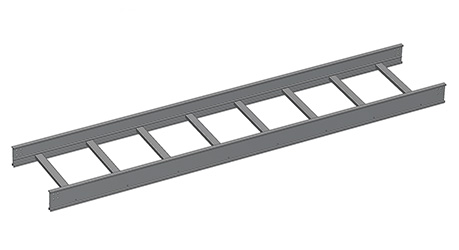

Aluminum cable ladder DS03

Code

A(mm)

B(mm)

DS03-100

100

80

DS03-200

200

180

DS03-300

300

280

DS03-400

400

380

DS03-400

500

380

The cable ladders are tested according to IEC 61537.
The cable ladders must not be used as walkways.

Introduction of related accessories

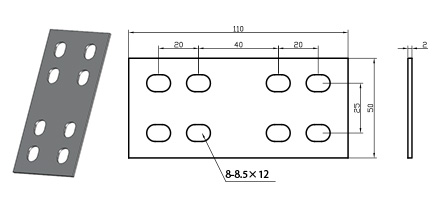

Jointer 100

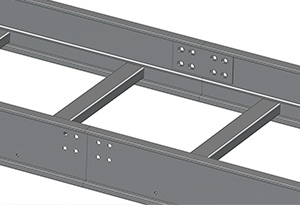

  • For straight, rigid jointing of cable ladders, bends, junctions and risers.

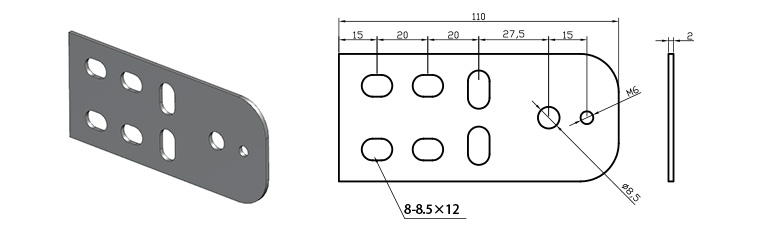

Coupling 100

Used for horizontal or vertical branches at any desired angle.

Use and installation

  • Coupling 100 is used for horizontal branching to the required angle. The cut length of the ladder ends determines the angle.

  • Coupling 100 is used to form vertical angles of the required size.

  • Coupling 100 is used to form vertical branches of the required angle.

  • Use 4 coupling 100 to form a horizontal bend in different angles. The cut lengths of the ladder ends determine the angle.

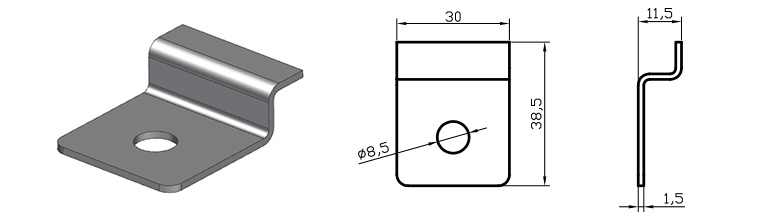

Profile clamp 100

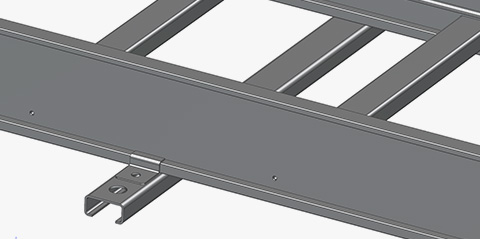

For installation where the cable ladder is to be fixed to cantilever arms, support brackets etc.

Use and installation

Support bracket
