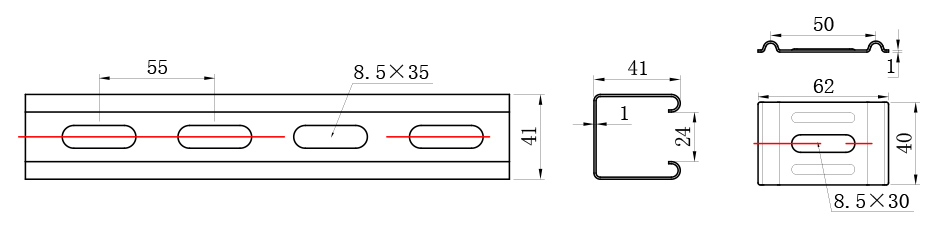

C-Trapeze

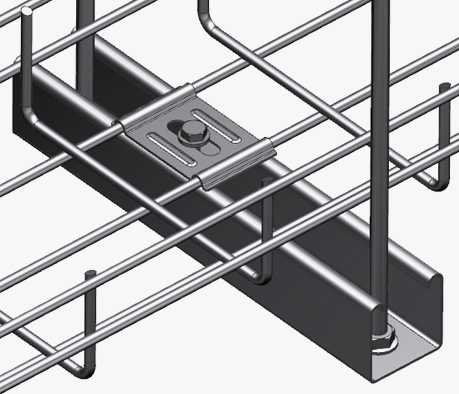

Fix the wire tray with on the threaded rod with nuts, hanging from the ceiling.

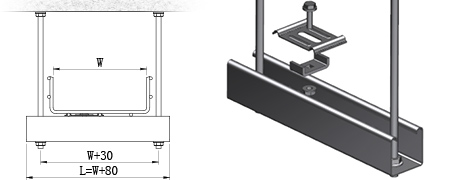

Matching Length of Trapeze with width of wire tray (L=W + 80).
Fits max M10 threaded rod.
Can be sold individually.
Item Name |
Wire tray Width |
Trapeze Length |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
|
lbs |
kg |
||||||||
Presser Blade |
|
|
|
|
BF081 |
BF082 |
BF083 |
BF084 |
BF085 |
W100 C-Trapeze |
100 |
180 |
|
|
BF411 |
BF412 |
BF413 |
BF414 |
BF415 |
W200 C-Trapeze |
200 |
280 |
|
|
BF421 |
BF422 |
BF423 |
BF424 |
BF425 |
W300 C-Trapeze |
300 |
380 |
|
|
BF431 |
BF432 |
BF433 |
BF434 |
BF435 |
W400 C-Trapeze |
400 |
480 |
|
|
BF441 |
BF442 |
BF443 |
BF444 |
BF445 |
W500 C-Trapeze |
500 |
580 |
|
|
BF451 |
BF452 |
BF453 |
BF454 |
BF455 |
W600 C-Trapeze |
600 |
680 |
|
|
BF461 |
BF462 |
BF463 |
BF464 |
BF465 |

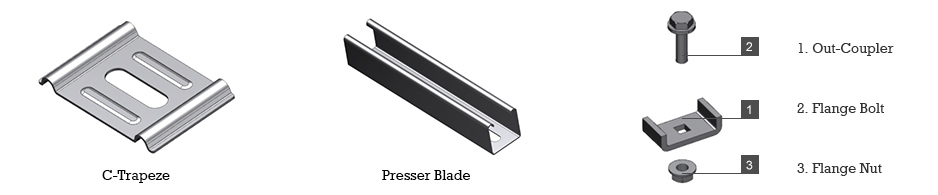

Out-Coupler |
|
|
|
|
BF011 |
BF012 |
BF013 |
BF014 |
BF015 |
M6*20 Flange Bolt |
|
|
|
|
T111 |
- |
- |
T114 |
T115 |
M6 Flange Nut |
|
|
|
|
T211 |
- |
- |
T214 |
T215 |
