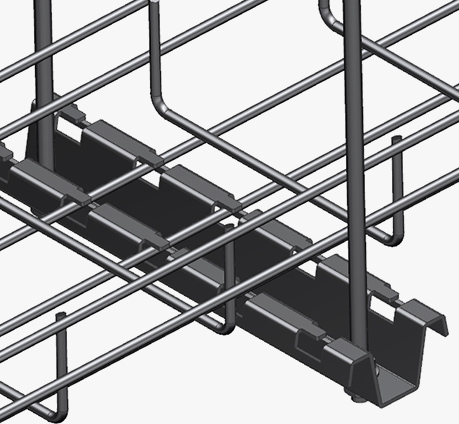

M-Trapeze

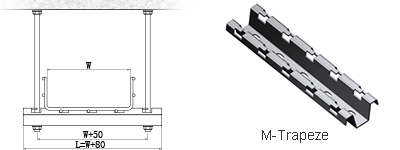

Fix the wire tray on the threaded rod with nuts, hanging from the ceiling.
Matching Length of Trapeze with width of wire tray (L=W + 80).
Supporting strength is higher than T-trapeze
Fits max M10 threaded rod.

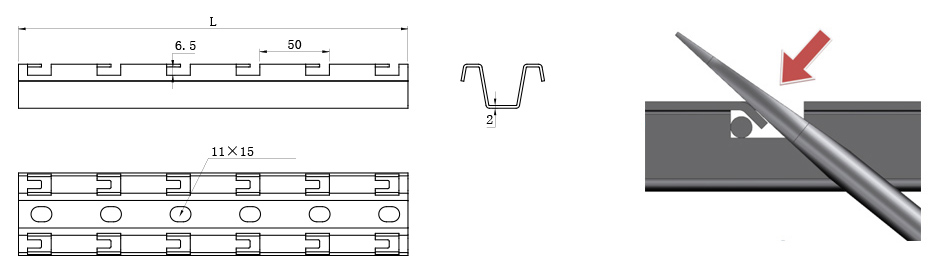

Support without screw, Fixed with bending protrusion.
Can be sold individually.
Item Name |
Wire tray Width |
Trapeze Length |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
|
lbs |
kg |
||||||||
W100 M-Trapeze |
100 |
180 |
|
|
BF311 |
BF312 |
BF313 |
BF314 |
BF315 |
W200 M-Trapeze |
200 |
280 |
|
|
BF321 |
BF322 |
BF323 |
BF324 |
BF325 |
W300 M-Trapeze |
300 |
380 |
|
|
BF331 |
BF332 |
BF333 |
BF334 |
BF335 |
W400 M-Trapeze |
400 |
480 |
|
|
BF341 |
BF342 |
BF343 |
BF344 |
BF345 |
W500 M-Trapeze |
500 |
580 |
|
|
BF351 |
BF352 |
BF353 |
BF354 |
BF355 |
W600 M-Trapeze |
600 |
680 |
|
|
BF361 |
BF362 |
BF363 |
BF364 |
BF365 |
