T-Trapeze

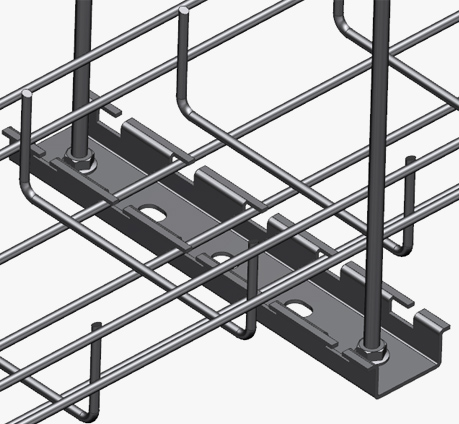

Fix the wire tray on the threaded rod with nuts, hanging from the ceiling.

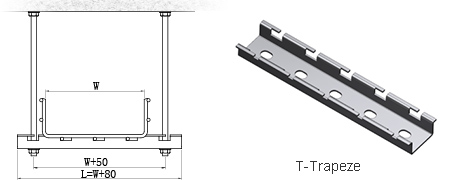

Matching Length of Trapeze with width of wire tray (L=W + 80).

Fits max M10 threaded rod.

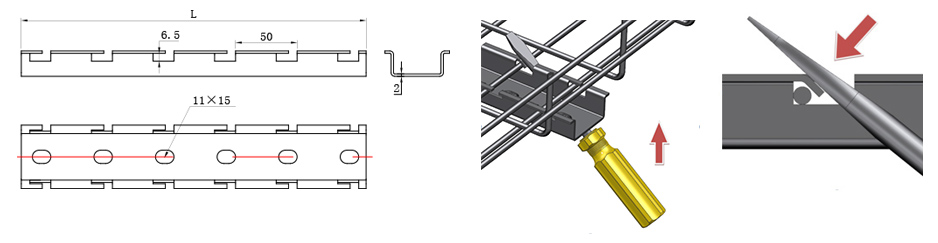

Support without screw, Fixed with bending protrusion.
Can be sold individually.

Item Name

Wire tray Width

Trapeze Length

Weight

Electroplate

HDG

Powder Coating

304 Stainless Steel

316L Stainless Steel

lbs

kg

W100 T-Trapeze

100

180





BF211

BF212

BF213

BF214

BF215

W200 T-Trapeze

200

280





BF221

BF222

BF223

BF224

BF225

W300 T-Trapeze

300

380





BF231

BF232

BF233

BF234

BF235

W400 T-Trapeze

400

480





BF241

BF242

BF243

BF244

BF245

W500 T-Trapeze

500

580





BF251

BF252

BF253

BF254

BF255

W600 T-Trapeze

600

680





BF261

BF262

BF263

BF264

BF265
