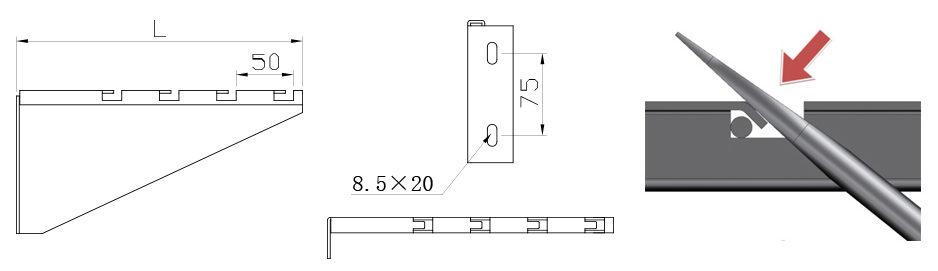

Triangle-N-Bracket

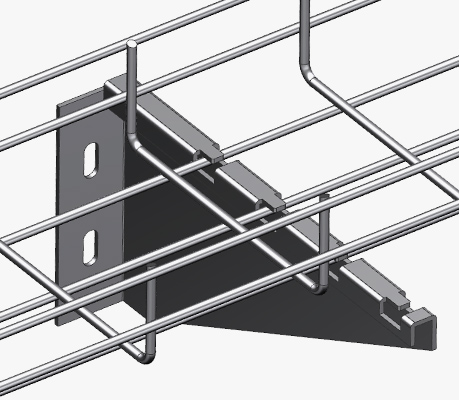

Weld assembly, used to mount to wall with expansion bolt.
Provide a variety of screw position.Expansion screws can be increased or decrease according to the need.

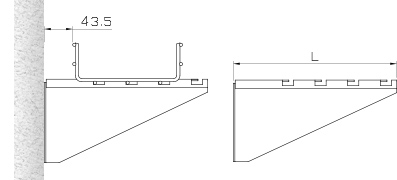

Matching the arm- length with the width of the wire tray .
Can be sold individually.
Item Name |
Wire tray Width |
Arm Length |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
|
lbs |
kg |
||||||||
W100 Triangle N-Bracket |
100 |
200 |
|
|
BF761 |
BF762 |
BF763 |
BF764 |
BF765 |
W150 Triangle N-Bracket |
150 |
250 |
|
|
BF771 |
BF772 |
BF773 |
BF774 |
BF775 |
W200 Triangle N-Bracket |
200 |
300 |
|
|
BF781 |
BF782 |
BF783 |
BF784 |
BF785 |
W300 Triangle N-Bracket |
300 |
400 |
|
|
BF791 |
BF792 |
BF793 |
BF794 |
BF795 |
W400 Triangle N-Bracket |
400 |
500 |
|
|
BF801 |
BF802 |
BF803 |
BF804 |
BF805 |
