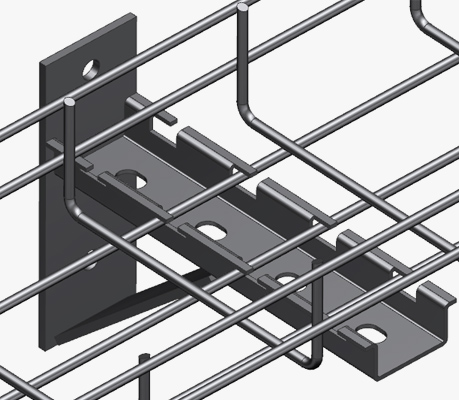

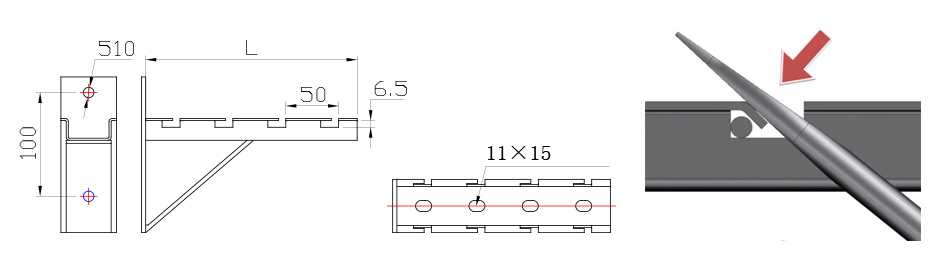

Triangle T Bracket

Weld assembly, used to mount to wall with expansion bolt.

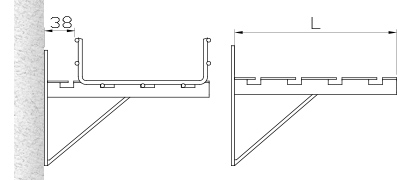

Matching the arm- length with the width of the wire tray .
Can be sold individually.

Item Name

Wire tray Width

Arm Length

Weight

Electroplate

HDG

Powder Coating

304 Stainless Steel

316L Stainless Steel

lbs

kg

W100 Triangle T-Bracket

100

150





BF711

BF712

BF713

BF714

BF715

W150 Triangle T-Bracket

150

200





BF721

BF722

BF723

BF724

BF725

W200 Triangle T-Bracket

200

250





BF731

BF732

BF733

BF734

BF735

W300 Triangle T-Bracket

300

350





BF741

BF742

BF743

BF744

BF745
