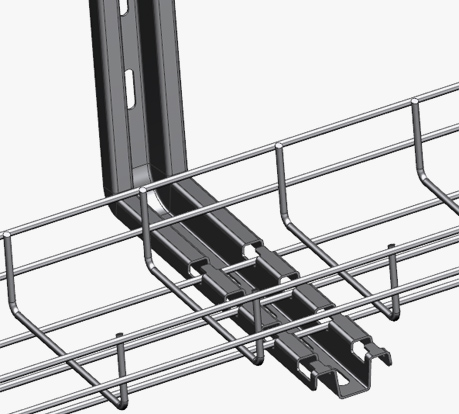

Wall M-Bracket

High supporting strength.
Used to mount to wall with expansion bolt.

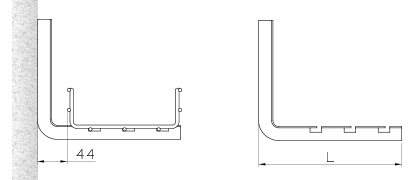

Ensure the distance between the wall.
Can be use to construct multi-storey bridge.
Matching the arm- length with the width of the wire tray .
Can be sold individually.

Item Name

Wire tray Width

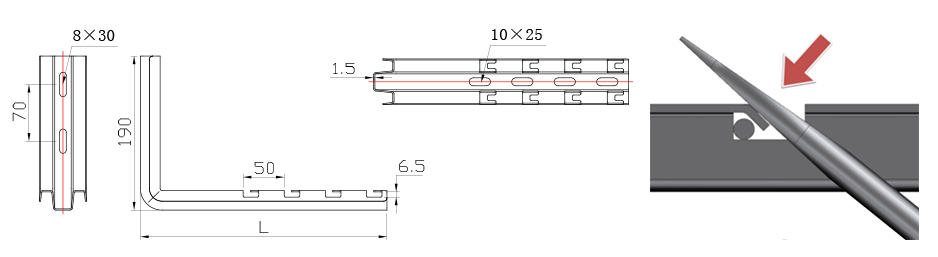

Arm Length

Weight

Electroplate

HDG

Powder Coating

304 Stainless Steel

316L Stainless Steel

lbs

kg

W100 Wall M-Bracket

100

160





BF661

BF662

BF663

BF664

BF665

W150 Wall M-Bracket

150

210





BF671

BF672

BF673

BF674

BF675

W200 Wall M-Bracket

200

260





BF681

BF682

BF683

BF684

BF685

W300 Wall M-Bracket

300

360





BF691

BF692

BF693

BF694

BF695

W400 Wall M-Bracket

400

460





BF701

BF702

BF703

BF704

BF705
