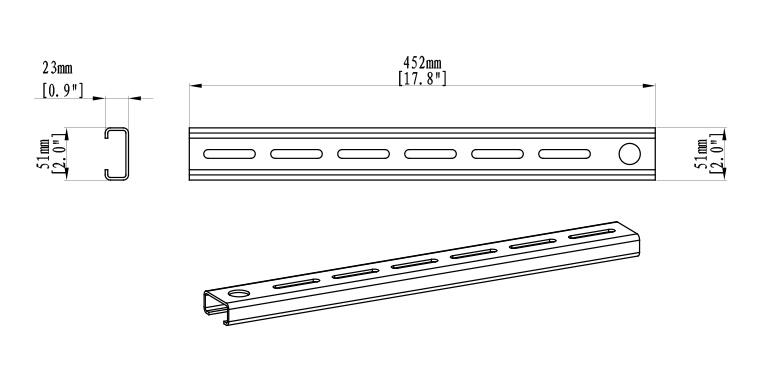

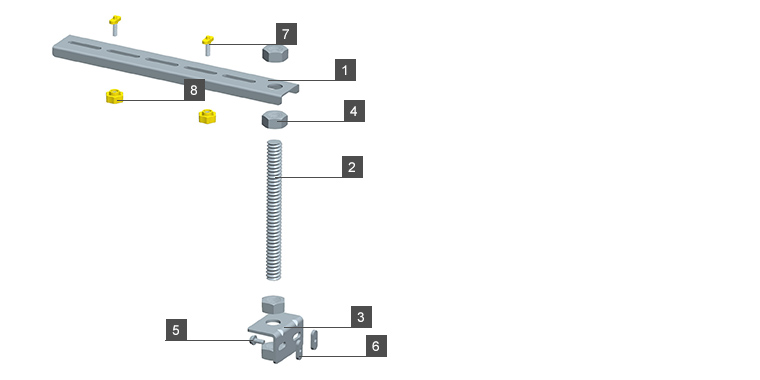

450-1 ladder rack support kit
item no.: AMK01Material: PVC/ABS
Used to support the 4"x15" system by spanning two existing threaded rod drops. Can be installed from above or below.

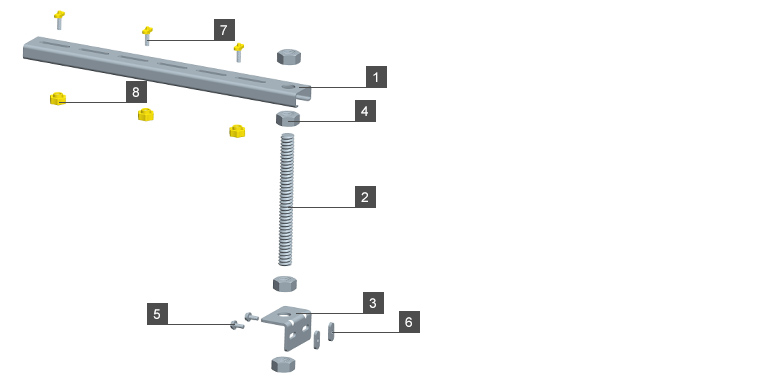

1.AM01 450 Support Bar x1
2.T001 M20 *200mm Threaded Rod x1
3.T002 L-steel x1
4.T003 M20 Nut x4
5.T004 M6*14 Flange Screw x2
6.T005 M6 Waist-shape Nut x2
7.AF35 T-shape Screw x3
8.AF33 Plastic Twist Nut x3

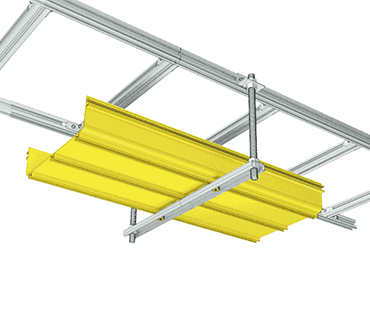

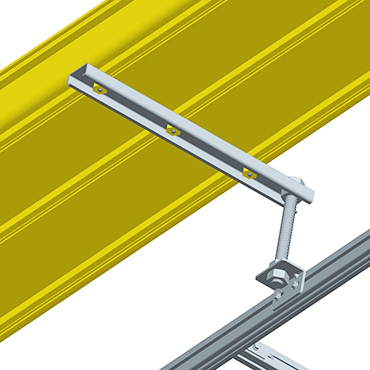

Installation demonstration

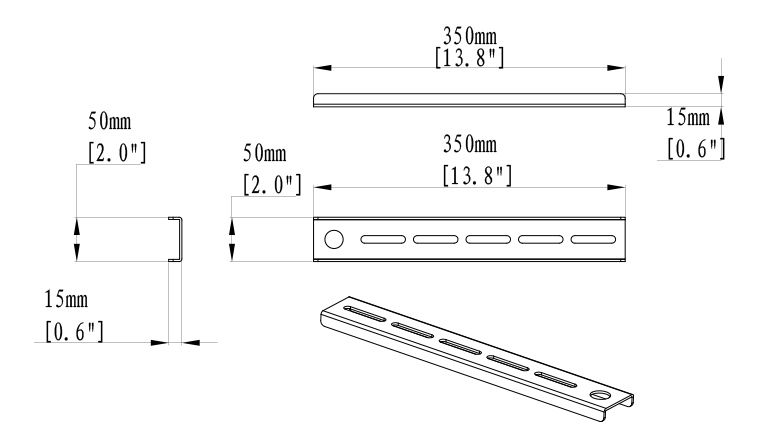

300-1 ladder rack support kit
item no.: AMK02Material: PVC/ABS
Used to support the 4"x10" system by spanning two existing threaded rod drops. Can be installed from above or below.
1.AM02 300 Support bar x1
2.T001 M20 *200mm Threaded Rod x1
3.T002 L-steel x2
4.T003 M20 Nut x4
5.T004 M6*14 Flange Screws x2
6.T005 M6 Waist-shape Screw x2
7.AF35 T-shape Screw x2
8.AF33 Plastic Twist Nut x2

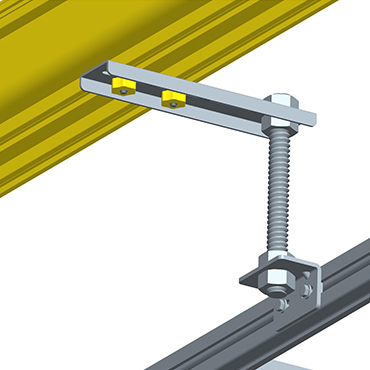

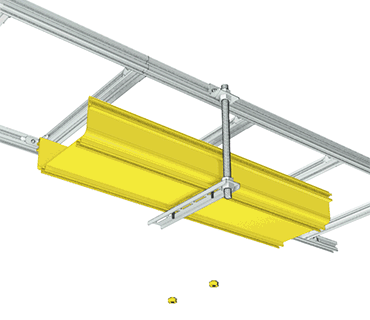

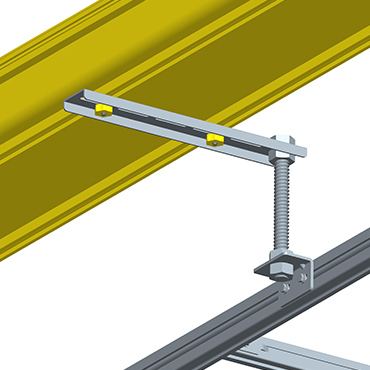

Installation demonstration

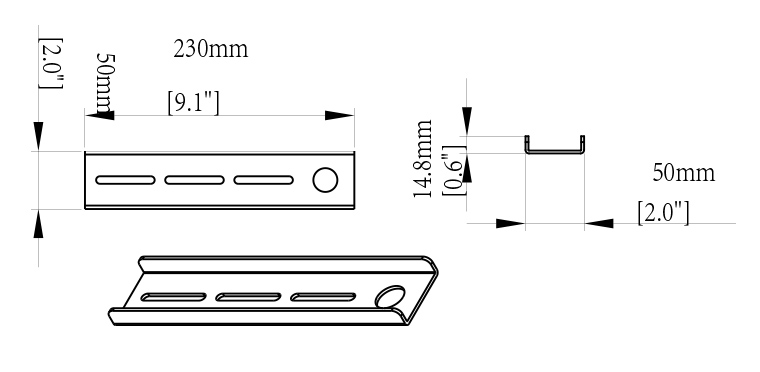

230-1 ladder rack support kit
item no.: AMK03Material: PVC/ABS
Used to support the 4"x5" system by spanning two existing threaded rod drops. Can be installed from above or below.
1.AM03 230 Support bar x1
2.T001 M20 *200mm Threaded Rod x1
3.T002 L-steel x2
4.T003 M20 Nut x4
5.T004 M6*14 Flange Screws x2
6.T005 M6 Waist-shape Screw x2
7.AF35 T-shape Screw x2
8.AF33 Plastic Twist Nut x2
Installation demonstration
