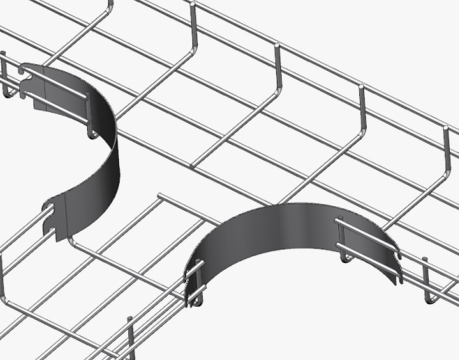

Arc Baffle

0.8mm metal plate bends and stucks in the side of straight section.

For tee or cross joins in horizontal direction, quick and easy. Used to not high load-bearing connections.

Can be sold individually.

Arc Baffle(Bending)

Arc Baffle(Unfold)

Item Name

Weight

Electroplate

HDG

Powder Coating

304 Stainless Steel

316L Stainless Steel

lbs

kg

H50 Arc Baffle





BF171

BF172

BF173

BF174

BF175

H100 Arc Baffle





BF181

BF182

BF183

BF184

BF185

H150 Arc Baffle





BF191

BF192

BF193

BF194

BF195
