The second generation open type wire mesh cable tray designed by Lepin,includes indoor and outdoor use,widely used in installation cable in different telecommunication houses, electricity units and engineering project.
Feature: easy to install,excellent cable ventilation,energy saving,easy for maintenance and update
Material: carbon steel(Q235B),stainless steel( 304 / 316L )
Surface treatment: 3 finishes for carbon steel, Electro zinc (EZ)for indoor use, hot dip galvanized(GC)for outdoor use, also powder coated(DC)(colors up to customer).
Acid washing then polished for stainless steel.
50 Height T Wire Tray Straight Section
50(mm)
100/150/200/300(mm)
4/5/6/(mm)
100 Height T Wire Tray Straight Section
100(mm)
100/150/200/300(mm)
4/5/6/(mm)
50 Height G Wire Tray Straight Section
50(mm)
50/100(mm)
4/5/6/(mm)
100 Height G Wire Tray Straight Section
100(mm)
100(mm)
4/5/6/(mm)
30 Height U Wire Tray Straight Section
30(mm)
50/100/150/200(mm)
4/5/6/(mm)
50 Height U Wire Tray Straight Section
50(mm)
50/100/150/200/300/
400/500/600(mm)
4/5/6/(mm)
100 Height U Wire Tray Straight Section
100(mm)
100/150/200/300/400/
500/600(mm)
4/5/6/(mm)
100 Height U Wire Tray Straight Section
100(mm)
300/400/500/600(mm)
4/5/6/(mm)
100 Height M Wire Tray Straight Section
100(mm)
100/150/200/300(mm)
4/5/6/(mm)

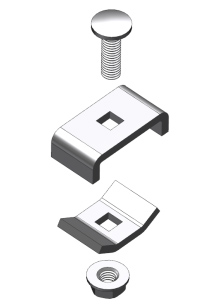

Coupler Kit
Coupler Kit includes a out-coupler, an in-coupler, a M6x20 carriage bolt and a M6 flange nut.
See More
Strengthening Bar Kit
Strengthening Bar Kit includes a strengthening bar,three in-couplers, three M6x20 carriage bolts and three M6 nuts.
See More
Fast Docking Bar
Easy installation which eliminate the use of screws,safe and firm,also apply to connect the straight sections which needs high load-bearing capacity...
See More

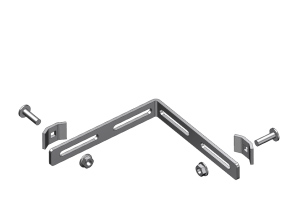

L Connector Kit
L Connector Kit includes a connector,two in-couplers,two M6x20 carriage bolts and two M6 flange nuts.
See More
Axis Coupler Kit
Axis Coupler Kit includes two axis coupler,a M6x20 carriage bolt and a M6 flange nut.
See More
Screwless Coupler
For straight section connections, quick and easy without screw.
See More
R140 Link Span Kit
R140 Link Span Kit includes a R140 Link Span,four axis coupler,four M6x20 carriage bolts and two M6 flange nuts.
See More
R300 Link Span Kit
R300 Link Span Kit includes a R300 Link Span,four axis coupler,four M6x20 carriage bolts and two M6 flange nuts.
See More
Arc Baffle
0.8mm metal plate bends and stucks in the side of straight section.
See More

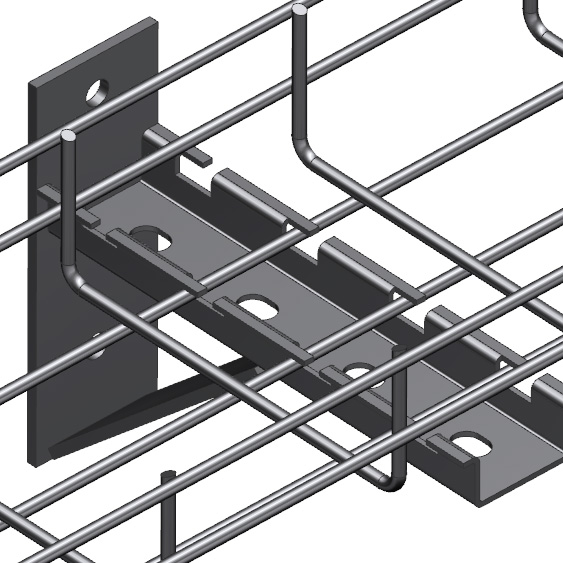

Wall T Bracket
Used to mount to wall with expansion bolt.
Ensure the distance between the wall
Can be use to construct multi-storey bridge.
See More

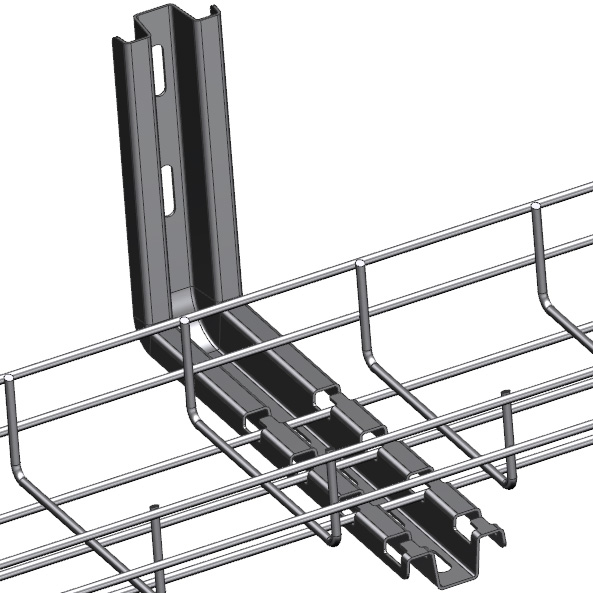

Wall M Bracket
High supporting strength.
Used to mount to wall with expansion bolt.
Ensure the distance between the wall.
See More
Triangle T Bracket
Weld assembly, used to mount to wall with expansion bolt.
Matching the arm- length with the width of the wire tray.
Can be sold individually.
See More
Triangle N Bracket
Provide a variety of screw position.Expansion screws can be increased or decrease according to the need.
Matching the arm- length with the width of the wire tray.
See More
Spider Bracket
Provide a variety of screw position.Expansion screws can be increased or decrease according to the need.
Applied to a variety of installation environment.
See More

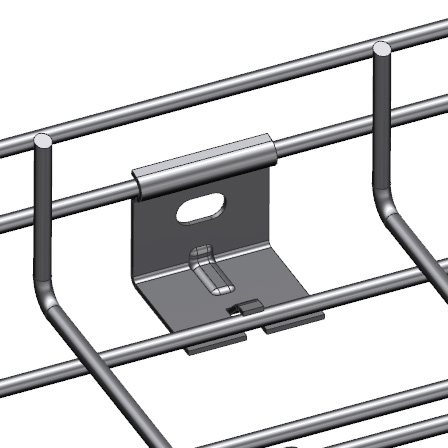

Horn Bracket
Can put the wire tray near the wall fixed.
Suitable for small width and load Lighter wire tray.
Can be sold individually.
See More

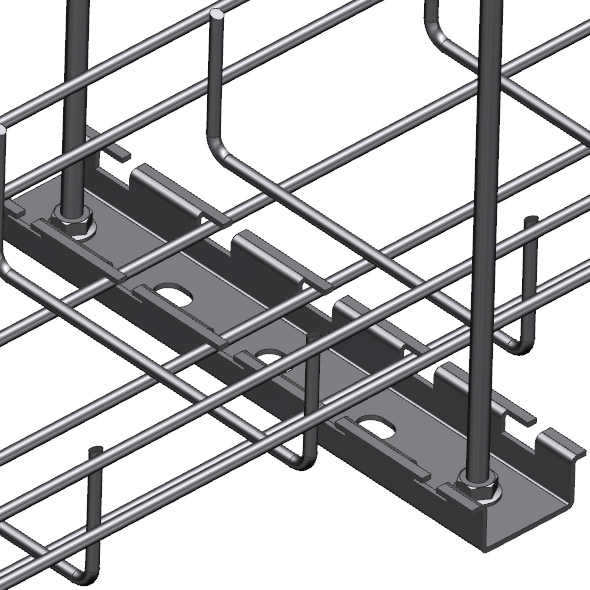

T Trapeze
Fix the wire tray on the threaded rod with nuts, hanging from the ceiling.
Matching Length of Trapeze with width of wire tray (L=W + 80).
See More

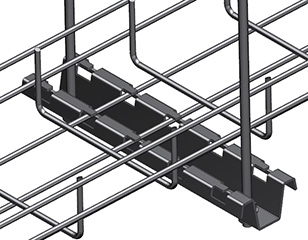

M Trapeze
Fix the wire tray on the threaded rod with nuts, hanging from the ceiling.
Matching Length of Trapeze with width of wire tray (L=W + 80).
See More
C Trapeze
Fix the wire tray with on the threaded rod with nuts, hanging from the ceiling.
Matching Length of Trapeze with width of wire tray (L=W + 80).
See More
50 Hanger
Hang the wire tray with 50 Hanger, used to hanging from the ceiling.
Only for width 50mm wire tray, screwless installation.
Fixed with bending hook.
See More
Hanging Clip
Needs two hanging clips to install.
Used to max 300mm Width wire tray.
Suitable for M6, M8, M10 threaded rod.
See More
Axis Coupler
Fixed with two flange nuts on threaded rod, hanging from the ceiling.
Needs PVC sockets to pretect the cable.
See More

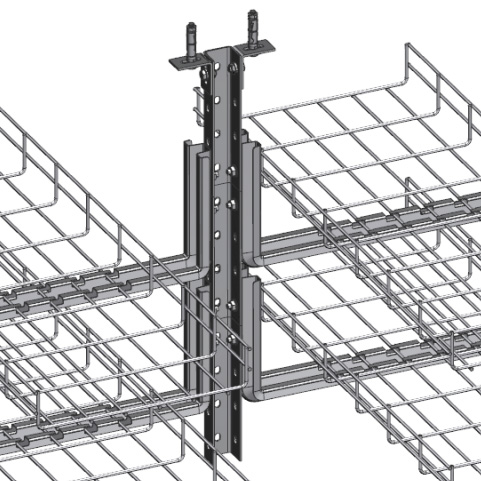

U Pillar
Used to hanging from the ceiling, with two L-clips,two expansion bolts,two M8x14 hex flange screw and two hex flange nuts.
Adjustable Height,and cooperate with a variety of supporting can be used to ceiling or ground mounting.
See More
50 Stand Bracket
Only for 50mm width wire tray, also applicable to the top of the cabinet.
Support without screw, Fixed with bending protrusion.
See More
Stand T Bracket
Can be directly fixed on the ground with screws.
Support without screw, Fixed with bending protrusion.
Range 63mm from the ground.
See More
Bridge Stand Bracket Kit
Bridge Stand Bracket Kit includes a T-Trapeze ,two M8x16 hex flange bolts and two M8 hex flange nuts.
The width 100mm-600mm wire tray and the...
See More
U Pillar
Used to fixed on the ground, with two L-clips ,two expansion bolts,two M8x14 hex flange screw and two hex flange nuts...
See More
Spider Bracket
Provide a variety of screw position.Expansion screws can be increased or decrease according to the need...
See More
