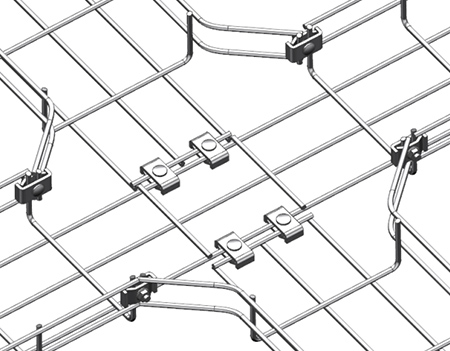

Coupler Kit
Coupler Kit includes a out-coupler, an in-coupler,a M6x20 carriage bolt and a M6 flange nut.
Be used to all of straight sections connection.
Can be sold individually.

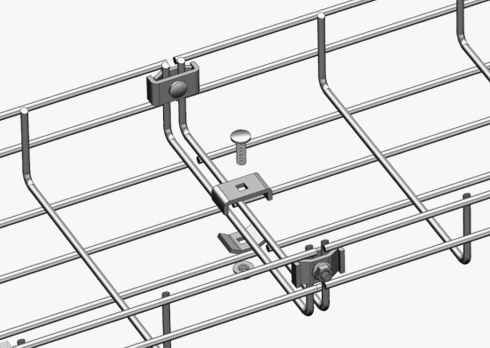

1. M6×20 Carriage bolt
2. Out-Coupler
3. In-Coupler
4. M6 Flange nut
Item Name |
Weight |
Electroplate |
HDG |
Powder Coating |
304 Stainless Steel |
316L Stainless Steel |
|
lbs |
kg |
||||||
Coulper Kit |
|
|
BFK011 |
BFK012 |
BFK013 |
BFK014 |
BFK015 |
M6×20 Carriage Bolt |
|
|
T011 |
- |
- |
T014 |
T015 |
Out-coupler |
|
|
BF011 |
BF012 |
BF013 |
BF014 |
BF015 |
In-coupler |
|
|
BF021 |
BF022 |
BF023 |
BF024 |
BF025 |
M6 Flange Nut |
|
|
T021 |
- |
- |
T024 |
T025 |

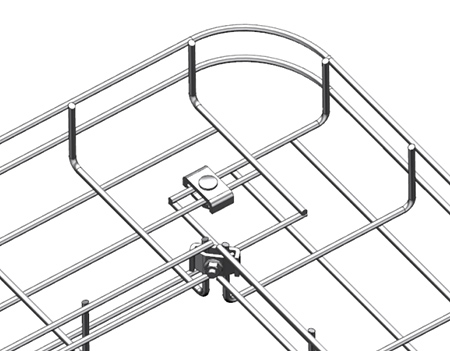

Scope of application and quantity
H50-H100-H150 |
2"(50mm) |
4"-8"(100-200mm) |
12"-24"(300-600mm) |
Side Loding |
2 x Coupler Kit |
2 x Coupler Kit |
2 x Coupler Kit |
Bottom Loding |
- |
1 x Coupler Kit |
2 x Coupler Kit |
