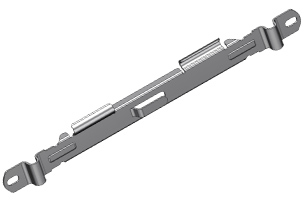

Fast Docking Bar

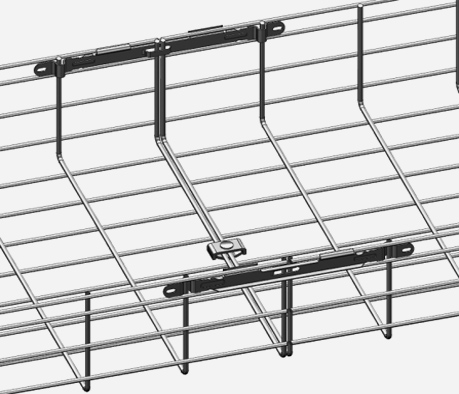

Easy installation which eliminate the use of screws,safe and firm,also apply to connect the straight sections which needs high load-bearing capacity with coupler kits used together

Be used to connect the same width straight section in the horizontal direction.
Can be sold individually.

Coupler Kit

Fast Docking Bar

Item Name

Weight

Electroplate

HDG

Powder Coating

304 Stainless Steel

316L Stainless Steel

lbs

kg

Fast Docking Bar





BF041

BF042

BF043

BF044

BF045

Couper kit





BFK011

BFK012

BFK013

BFK014

BFK015

Scope of application and quantity

H50-H100-H150

2"(50mm)

4"-8"(100-200mm)

12"-24"(300-600mm)

Side Loding

2 x Fast Docking Bar

2 x Docking Bar

2 x Docking Bar

Bottom Loding

-

1 x Coupler Kit

2 x Coupler Kit

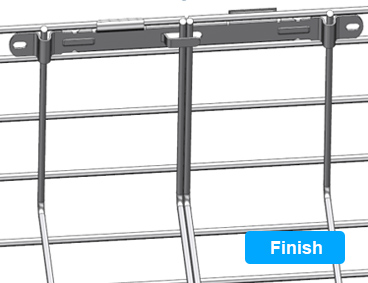

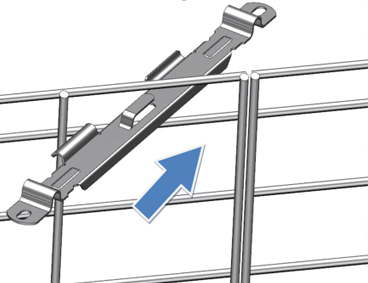

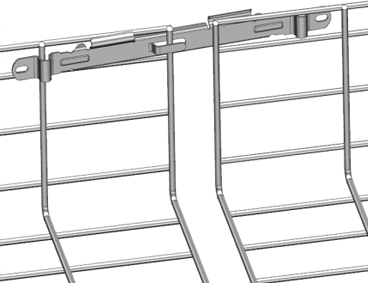

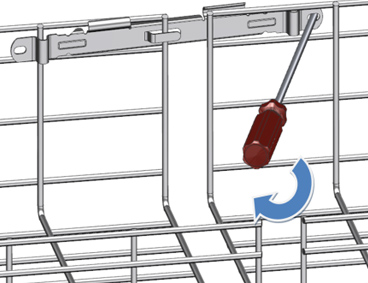

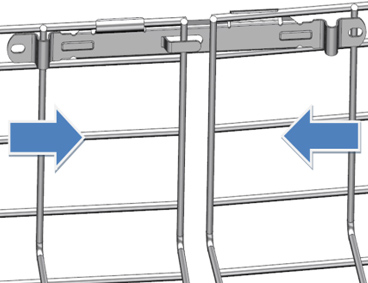

Operating Steps
