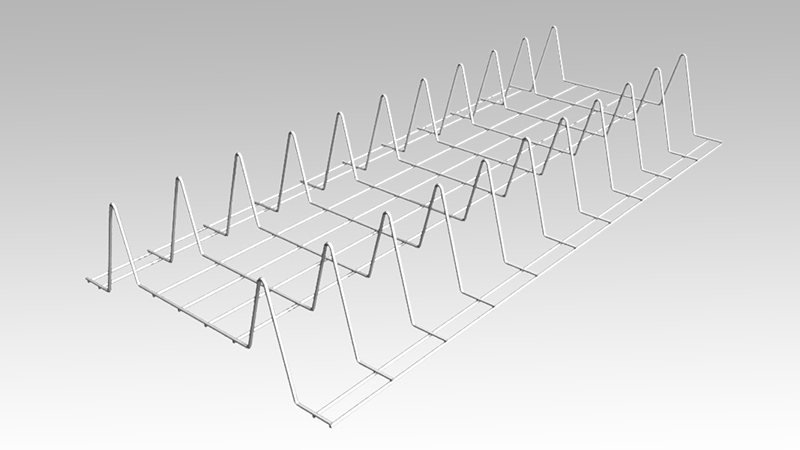

100 Height M - Wire Tray Straight Section
Connection
Support System
Installations
M-Wire Cable Tray Benefits
Can be directly fixed on the flat surface without support mountings, such as ground, top of the cabinets etc.
Connection
Support System
Installations
Can be directly fixed on the flat surface without support mountings, such as ground, top of the cabinets etc.
Height（mm） |
Width（mm） |
Sectional View |
100 |
100 |
|
100 |
150 |
|
100 |
200 |
|
100 |
300 |
|
Item Name |
Wire Dia |
Height |
Width |
Length |
Weight |
Electroplate |
Hot Dip Galvanizing |
Powder Coating |
Stainless Steel 304 |
Stainless Steel 316L |
||||
mm |
mm |
inch |
mm |
inch |
mm |
inch |
lb |
kg |
||||||
M-Wire Tray Straight Section |
4 |
100 |
4 |
100 |
4 |
3000 |
118 |
9.17 |
4.17 |
BS44321 |
BS44322 |
BS44323 |
BS44324 |
BS44325 |
M-Wire Tray Straight Section |
4 |
100 |
4 |
150 |
6 |
3000 |
118 |
10.19 |
4.63 |
BS44331 |
BS44332 |
BS44333 |
BS44334 |
BS44335 |
M-Wire Tray Straight Section |
4 |
100 |
4 |
200 |
8 |
3000 |
118 |
10.83 |
4.92 |
BS44341 |
BS44342 |
BS44343 |
BS44344 |
BS44345 |
M-Wire Tray Straight Section |
4 |
100 |
4 |
300 |
12 |
3000 |
118 |
13.20 |
6.00 |
BS44351 |
BS44352 |
BS44353 |
BS44354 |
BS44355 |
Item Name |
Wire Dia |
Height |
Width |
Length |
Weight |
Electroplate |
Hot Dip Galvanizing |
Powder Coating |
Stainless Steel 304 |
Stainless Steel 316L |
||||
mm |
mm |
inch |
mm |
inch |
mm |
inch |
lb |
kg |
||||||
M-Wire Tray Straight Section |
5 |
100 |
4 |
100 |
4 |
3000 |
118 |
14.32 |
6.51 |
BS45321 |
BS45322 |
BS45323 |
BS45324 |
BS45325 |
M-Wire Tray Straight Section |
5 |
100 |
4 |
150 |
6 |
3000 |
118 |
15.91 |
7.23 |
BS45331 |
BS45332 |
BS45333 |
BS45334 |
BS45335 |
M-Wire Tray Straight Section |
5 |
100 |
4 |
200 |
8 |
3000 |
118 |
16.90 |
7.68 |
BS45341 |
BS45342 |
BS45343 |
BS45344 |
BS45345 |
M-Wire Tray Straight Section |
5 |
100 |
4 |
300 |
12 |
3000 |
118 |
20.64 |
9.38 |
BS45351 |
BS45352 |
BS45353 |
BS45354 |
BS45355 |
Item Name |
Wire Dia |
Height |
Width |
Length |
Weight |
Electroplate |
Hot Dip Galvanizing |
Powder Coating |
Stainless Steel 304 |
Stainless Steel 316L |
||||
mm |
mm |
inch |
mm |
inch |
mm |
inch |
lb |
kg |
||||||
M-Wire Tray Straight Section |
6 |
100 |
4 |
100 |
4 |
3000 |
118 |
20.57 |
9.35 |
BS46321 |
BS46322 |
BS46323 |
BS46324 |
BS46325 |
M-Wire Tray Straight Section |
6 |
100 |
4 |
150 |
6 |
3000 |
118 |
22.90 |
10.41 |
BS46331 |
BS46332 |
BS46333 |
BS46334 |
BS46335 |
M-Wire Tray Straight Section |
6 |
100 |
4 |
200 |
8 |
3000 |
118 |
24.33 |
11.06 |
BS46341 |
BS46342 |
BS46343 |
BS46344 |
BS46345 |
M-Wire Tray Straight Section |
6 |
100 |
4 |
300 |
12 |
3000 |
118 |
29.72 |
13.51 |
BS46351 |
BS46352 |
BS46353 |
BS46354 |
BS46355 |
