Height(mm)

Width(mm)

Sectional View

50

100

50

150

50

200

50

300

Item Name

Wire Dia

Height

Width

Length

Weight
(Per Meter)

Electroplate

Hot Dip Galvanizing

Powder Coating

Stainless Steel 304

Stainless Steel 316L

mm

mm

inch

mm

inch

mm

inch

lb

kg

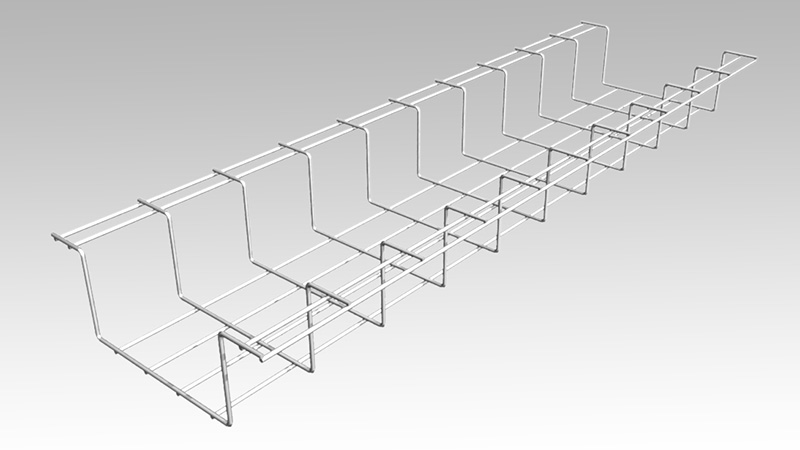

T-Wire Tray Straight Section

4

50

1.2

100

4

3000

118

6.05

2.75

BS24221

BS24222

BS24223

BS24224

BS24225

T-Wire Tray Straight Section

4

50

1.2

150

6

3000

118

7.11

3.23

BS24231

BS24232

BS24233

BS24234

BS24235

T-Wire Tray Straight Section

4

50

1.2

200

8

3000

118

8.12

3.69

BS24241

BS24242

BS24243

BS24244

BS24245

T-Wire Tray Straight Section

4

50

1.2

300

12

3000

118

10.10

4.59

BS24251

BS24252

BS24253

BS24254

BS24255

Item Name

Wire Dia

Height

Width

Length

Weight
(Per Meter)

Electroplate

Hot Dip Galvanizing

Powder Coating

Stainless Steel 304

Stainless Steel 316L

mm

mm

inch

mm

inch

mm

inch

lb

kg

T-Wire Tray Straight Section

5

50

1.2

100

4

3000

118

9.44

4.29

BS25221

BS25222

BS25223

BS25224

BS25225

T-Wire Tray Straight Section

5

50

1.2

150

6

3000

118

11.88

5.04

BS25231

BS25232

BS25233

BS25234

BS25235

T-Wire Tray Straight Section

5

50

1.2

200

8

3000

118

12.67

5.76

BS25241

BS25242

BS25243

BS25244

BS25245

T-Wire Tray Straight Section

5

50

1.2

300

12

3000

118

16.92

7.17

BS25251

BS25252

BS25253

BS25254

BS25255

Item Name

Wire Dia

Height

Width

Length

Weight
(Per Meter)

Electroplate

Hot Dip Galvanizing

Powder Coating

Stainless Steel 304

Stainless Steel 316L

mm

mm

inch

mm

inch

mm

inch

lb

kg

T-Wire Tray Straight Section

6

50

1.2

100

4

3000

118

13.60

6.18

BS26221

BS26222

BS26223

BS26224

BS26225

T-Wire Tray Straight Section

6

50

1.2

150

6

3000

118

15.97

7.26

BS26231

BS26232

BS26233

BS26234

BS26235

T-Wire Tray Straight Section

6

50

1.2

200

8

3000

118

18.24

8.29

BS26241

BS26242

BS26243

BS26244

BS26245

T-Wire Tray Straight Section

6

50

1.2

300

12

3000

118

22.73

10.33

BS26251

BS26252

BS26253

BS26254

BS26255
