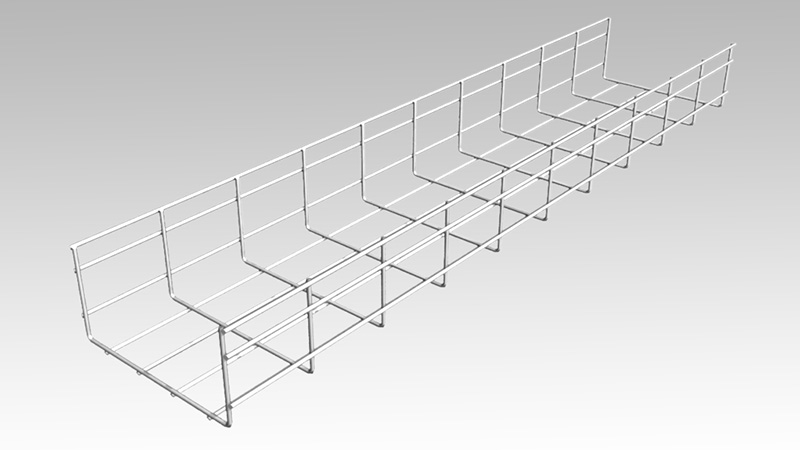

150 Height U - Wire Tray Straight Section

Connection
Support System
Installations

Strengthening Bar Kit

Fast Docking Bar

L Connector Kit

Axis Coupler Kit

Screwless Coupler

R140 Link Span Kit

R300 Link Span Kit

Height（mm）	Width（mm）	Sectional View
100	300
100	400
100	500
100	600

Item Name	Wire Dia	Height		Width		Length		Weight (Per Meter)		Electroplate	Hot Dip Galvanizing	Powder Coating	Stainless Steel 304	Stainless Steel 316L
Item Name	mm	mm	inch	mm	inch	mm	inch	lb	kg	Electroplate	Hot Dip Galvanizing	Powder Coating	Stainless Steel 304	Stainless Steel 316L
U-Wire Tray Straight Section	4	150	6	300	12	3000	118	13.16	5.98	BS14451	BS14452	BS14453	BS14454	BS14455
U-Wire Tray Straight Section	4	150	6	400	16	3000	118	15.14	6.88	BS14461	BS14462	BS14463	BS14464	BS14465
U-Wire Tray Straight Section	4	150	6	500	20	3000	118	17.12	7.78	BS14471	BS14472	BS14473	BS14474	BS14475
U-Wire Tray Straight Section	4	150	6	600	24	3000	118	19.07	8.67	BS14481	BS14482	BS14483	BS14484	BS14485

Item Name	Wire Dia	Height		Width		Length		Weight (Per Meter)		Electroplate	Hot Dip Galvanizing	Powder Coating	Stainless Steel 304	Stainless Steel 316L
Item Name	mm	mm	inch	mm	inch	mm	inch	lb	kg	Electroplate	Hot Dip Galvanizing	Powder Coating	Stainless Steel 304	Stainless Steel 316L
U-Wire Tray Straight Section	5	150	6	300	12	3000	118	20.57	9.35	BS15451	BS15452	BS15453	BS15454	BS15455
U-Wire Tray Straight Section	5	150	6	400	16	3000	118	23.65	10.75	BS15461	BS15462	BS15463	BS15464	BS15465
U-Wire Tray Straight Section	5	150	6	500	20	3000	118	26.73	12.15	BS15471	BS15472	BS15473	BS15474	BS15475
U-Wire Tray Straight Section	5	150	6	600	24	3000	118	29.81	13.55	BS15481	BS15482	BS15483	BS15484	BS15485

Item Name	Wire Dia	Height		Width		Length		Weight (Per Meter)		Electroplate	Hot Dip Galvanizing	Powder Coating	Stainless Steel 304	Stainless Steel 316L
Item Name	mm	mm	inch	mm	inch	mm	inch	lb	kg	Electroplate	Hot Dip Galvanizing	Powder Coating	Stainless Steel 304	Stainless Steel 316L
U-Wire Tray Straight Section	6	150	6	300	12	3000	118	29.61	13.46	BS16451	BS16452	BS16453	BS16454	BS16455
U-Wire Tray Straight Section	6	150	6	400	16	3000	118	34.06	15.48	BS16461	BS16462	BS16463	BS16464	BS16465
U-Wire Tray Straight Section	6	150	6	500	20	3000	118	38.50	17.50	BS16471	BS16472	BS16473	BS16474	BS16475
U-Wire Tray Straight Section	6	150	6	600	24	3000	118	42.92	19.51	BS16481	BS16482	BS16483	BS16484	BS16485
